Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 316

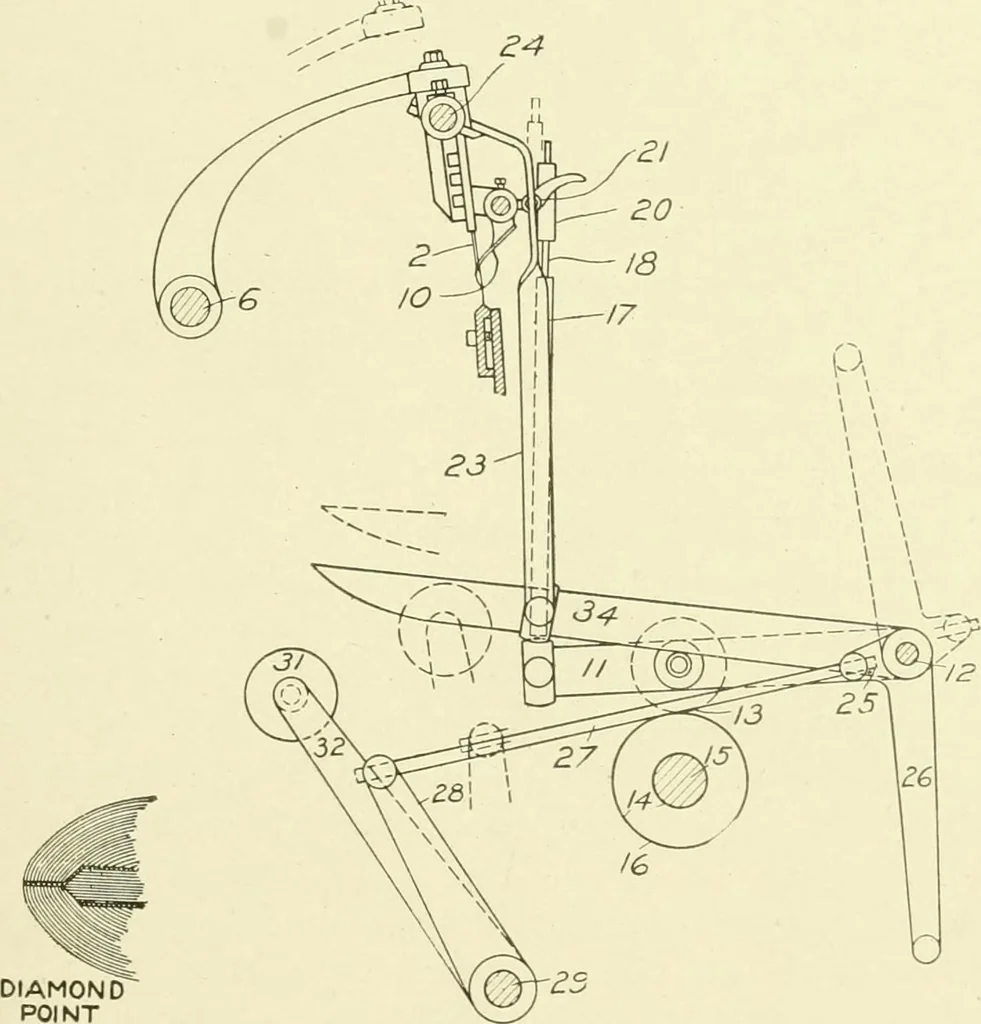

n descend tosuch a distance that the new loop passes under the needle-beards;and the needles are moved toward a fixed presser-bar to close thebeards; so that, as the needle-bar descends still farther, the point ofeach beard shall enter the old loops, being landed on top of the needle-beards, and,… … Fig. 179. Narrowing Mechanism, Raising Device, and •Diamond Point Meclianism. as it goes over the new one. The whole row of old loops beingover, the needles commence to rise, the sinkers and dividers comingforward above the loops to hold them down in position, ready forthe making of the next row of…
Knitting machines
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
