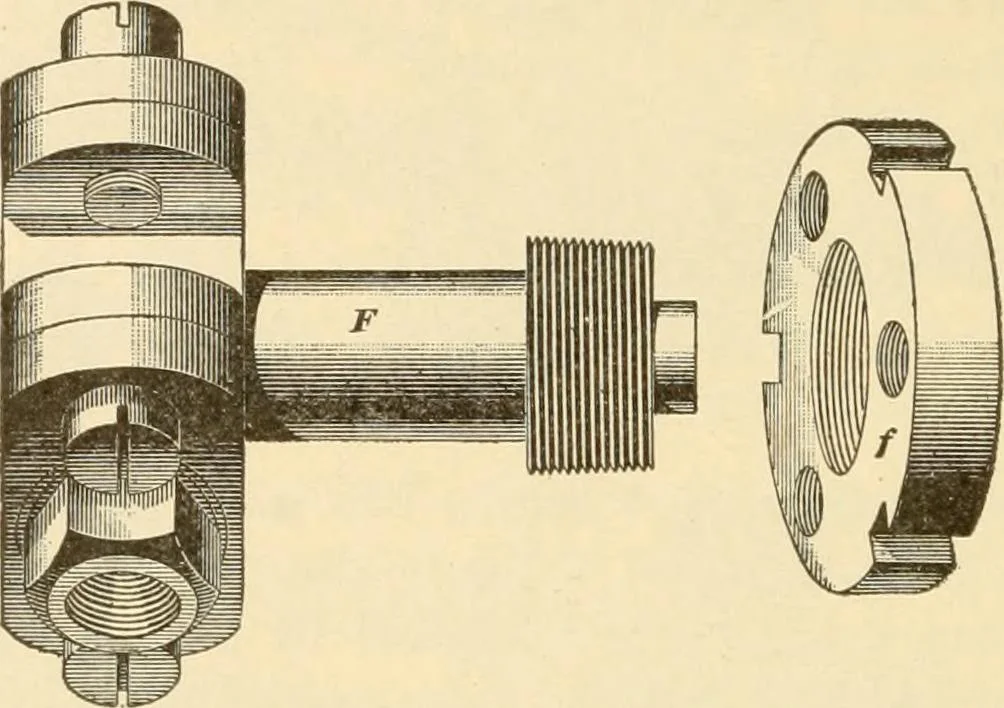

regulator casting at /, the connection with the high-pressurepiping being made by means of the fitting F shown in Fig. 6.The flange /, Fig. 6, is screwed on to the fitting F, and thenthis flange and the flange /, Fig. 5, are bolted together by three CAR LIGHTING. ^12 bolts. Connection is made at 0… … We do not show a section of these regulators, as they aresupposed to be put up as received from the makers, and not to
