Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 318

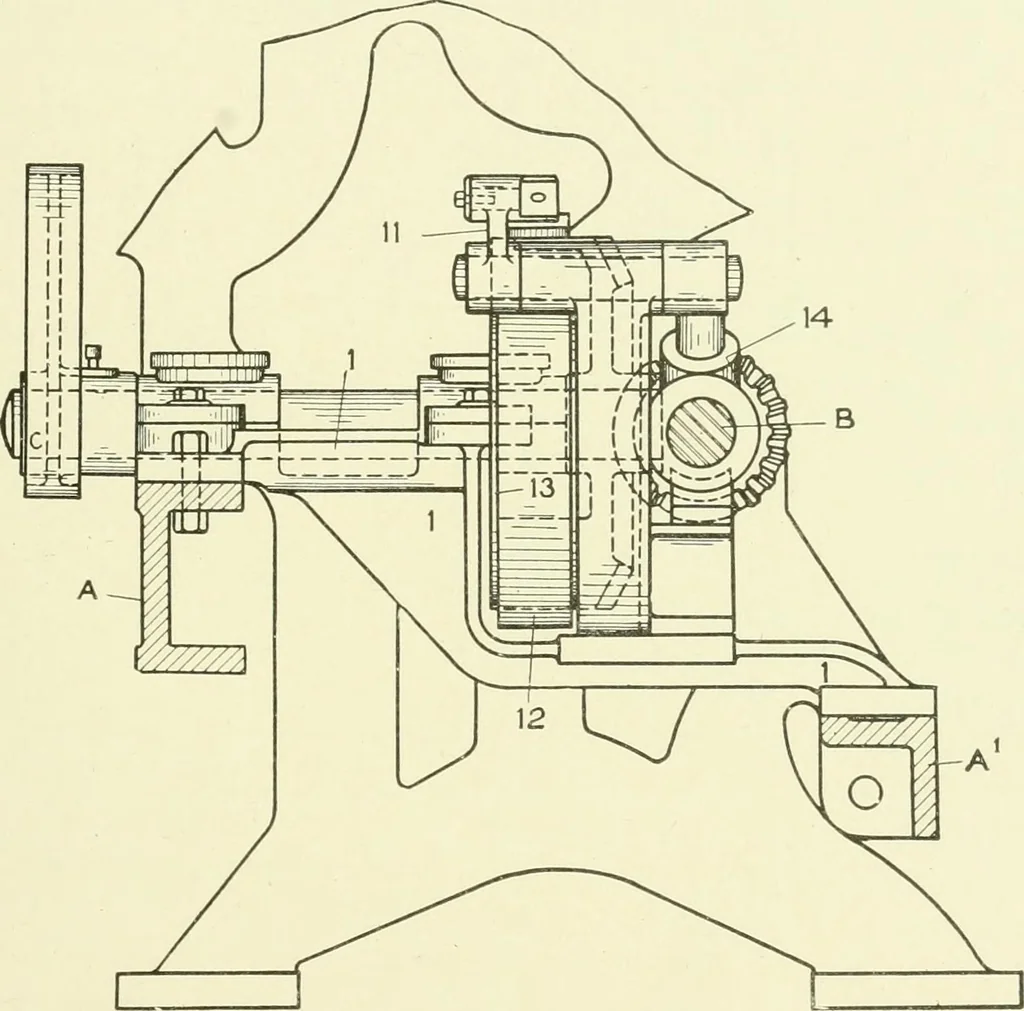

: The lever 11 is pivoted at one end to a shaft 12, and is provided 286 KNITTING 269 intermediate of its length with a roller 13, which bears normally uponthe concentric periphery 14 of a disc fixed to the rotary shaft 15, uponwhich the lever is thus supported without movement; but when theshaft 15… … Fig. 181 Draw-Cam Shaft, Bearing, and Brake, nected to the free end of the lever IL is a rod 17, the upper end 18 ofwhich is engaged so as to slide in a sleeve 20, which in turn is pivotallyconnected at 21 to an arm 22 fixed to the shaft 8. The free movementof the rod-end 18 in said sleeve is…
Knitting machines
