Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 396

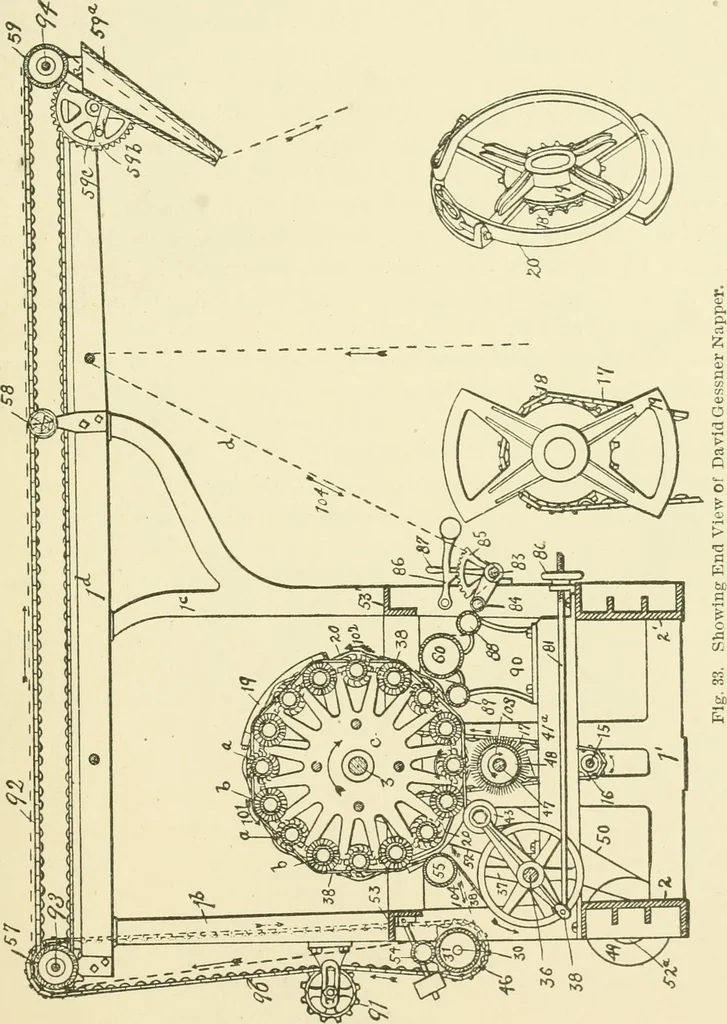

t engage,respectively, with the swing-arms 82, which are loosely mounted onshaft 36 and carry on their free ends the idlers 43. The broken line (/ indicates the cloth being treated. In leavingthe napping-roUs it passes under a roll 55, fast to the two idlers 39, 39,and turned with them at the same… … upward and over the driven feed roll 57, over the idler 58 (overheadof the operator) and driven feed roll 59, whence it is delivered 363 6S KXIT GOODS FINISHING through the folder 59.behind the operator. The ehain 9G is heldtaut by the idler 91 and drives the shaft 93, to whieh the feed roll 57is…
Knitting machines
