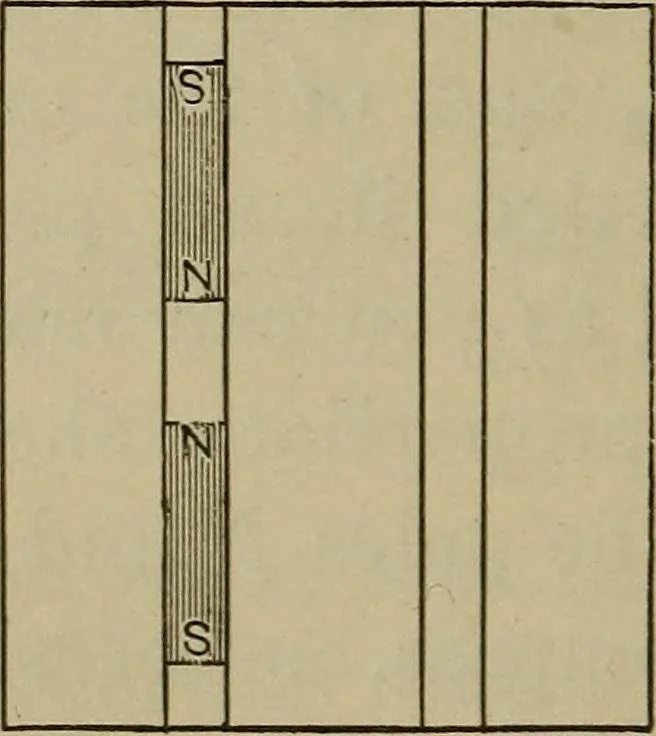

round on the outsidetoward the south-seeking pole, then through thebody of the magnet to the point where you began totrace it. Note also that the curves are bisymmetri-cal with respect to the axis of the magnet. (Ji) Over the diagram write the heading, Field ofa Single Bar Magnet; and under it… … Fig. 24. shown in eitherdiagram (Figure21), and repeatall the operations,again drawing ar-rows at the char-acteristic pointsof the field.(b) Above the MAGNETISM AND ELECTRICITY 125 diagram write the heading, Field of Two Bar Mag-nets, Side by Side (or End to End), Like PolesAdjacent; and below the…
