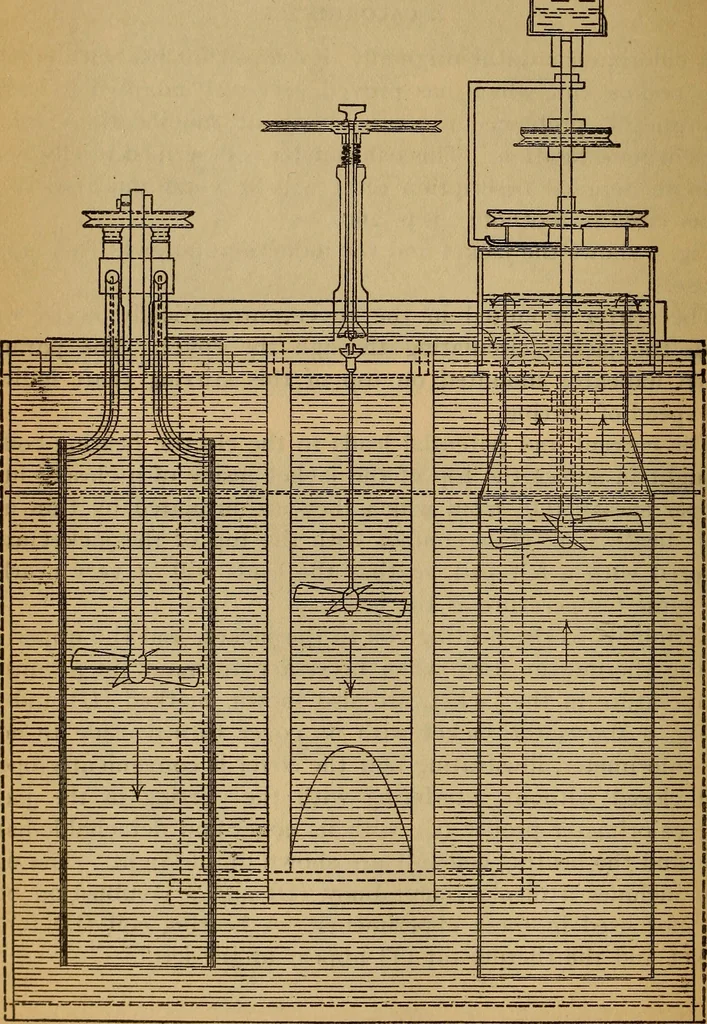

ver turned aside to admitthe calorimeter, illustrating how the cover is conveniently openedand closed without interfering with the stirring in the jacket.The calorimeter proper (C), with its cover and detachable handle(L), and the heating coil (M) are shown at the right. The figurealso includes a… … Fig. 3.—Section through calorimeter Dickinson, Harper,Osborne Latent Heat of Fusion of Ice 241 Fig. 3 shows the details of construction, representing a sectionthrough the three stirring shafts. The direction of circulation ofthe water is indicated by arrows. The main jacket stirrer drawswater from…
Specific heat and latent heat · Heat flow, thermal and thermodynamic processes
