Leaf springs, their characteristics and methods of specification; a hand-book of useful information relating to automobile leaf springs, their manufacture, methods of specification, details and characteristics (1912)
Landau, David, ed, Sheldon axel Company · Wilkes-Barre, Pa., Sheldon axle company, Spring engineering department · leaf 25

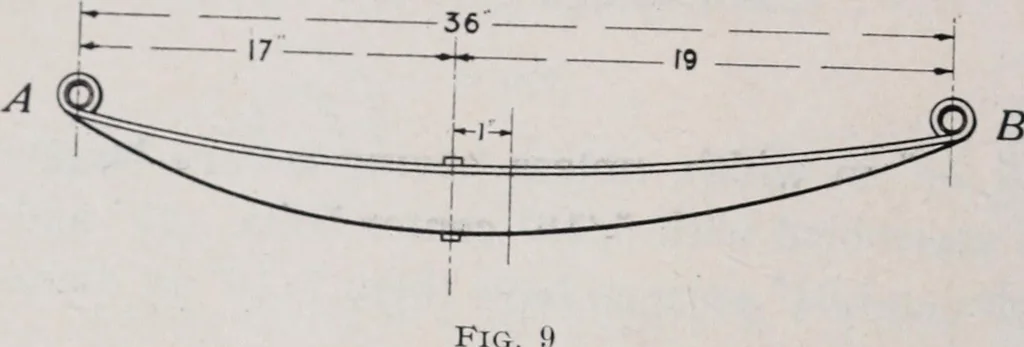

-tively little used. Location . CC?ter boh may actuall.v be placed at the centerof Center a Sp.rinS ,,r be located forward of to the rear ofBolt that point. One reason, among others, for placing the center boh forward of the center in front springs is toincrease the wheel base. This is perfectly… … In I igure 9 we have a 36 spring in which the center holt has beenPlace, 1 forward of the center. The distance from A to the boltwill then he 17 and from the holt to B 19. To find the off-center distance we merely get the difference between the two hall lengths and divide by 2. Or, conversely, if…
Automobiles
