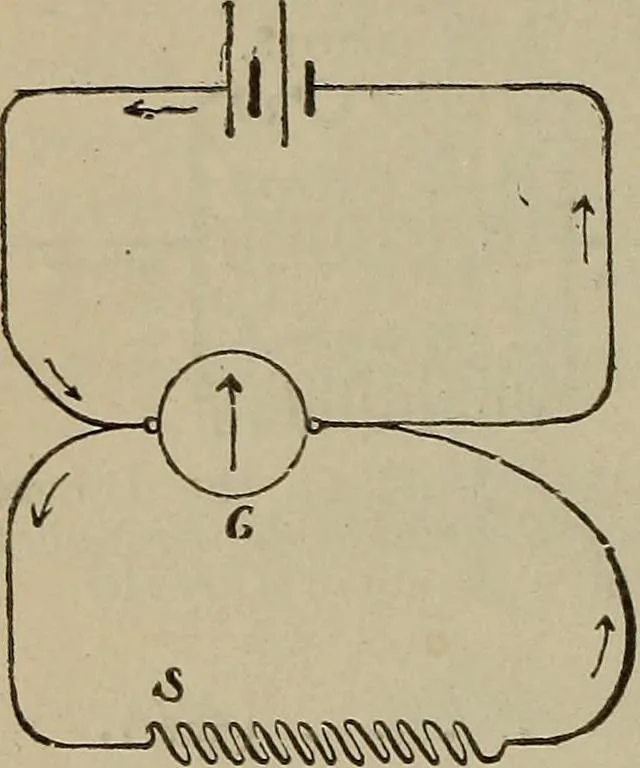

anybranch, by the potential difference across the branches, ac-cording to Ohms Law. Prob. 62-A : Find the current through each branch of the dividedcircuit in Fig. 119, if the potential difference is 24 volts. By^ 161 C = p = ^= 12 amperes. »1 24 ^. J 24 .3 Also ^ =6 amperes and -k = 3 amperes.… … Fig. 121. tion of the total current may be passed through the galva-nometer, the remainder passing through the wire, S, connectedacross the galvanometer terminals. The wire, S, forms a by-path for the current, and iscalled a shunt, and the galvanometeris said to be shunted. If the resist-ance of…
