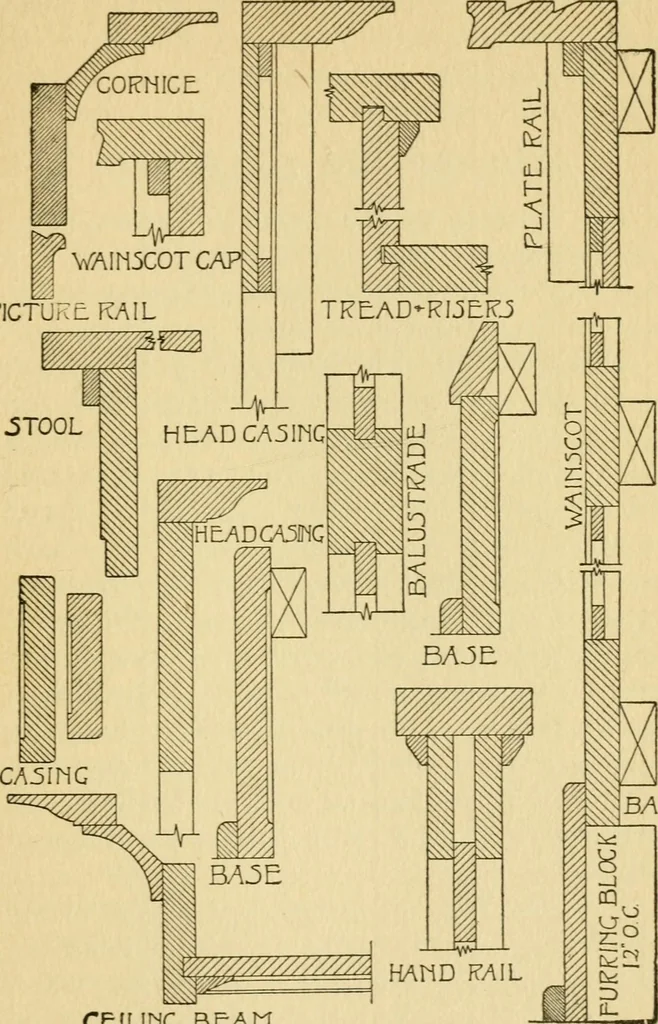

t and is easily changed or erased.After the drawing is completed on this paper,then use a cheap, thin paper, and trace through,using a broad, heavy line and colored crayon forcross-sectioning the sections of the work. Yel-low is generally used for wood, red for brick,green for stone, blue for iron… … BAJ£ CEILIMC BEAN Fig. 16, A Sheet of Full-Sized Details 238 ARCHITECTURAL DRAFTING two for the contractor. One of the copies madeon tracing paper is usually kept in the office,since it can be folded up to a convenient size andfiled, the original and one copy on thin papergoing to the contractor.…
