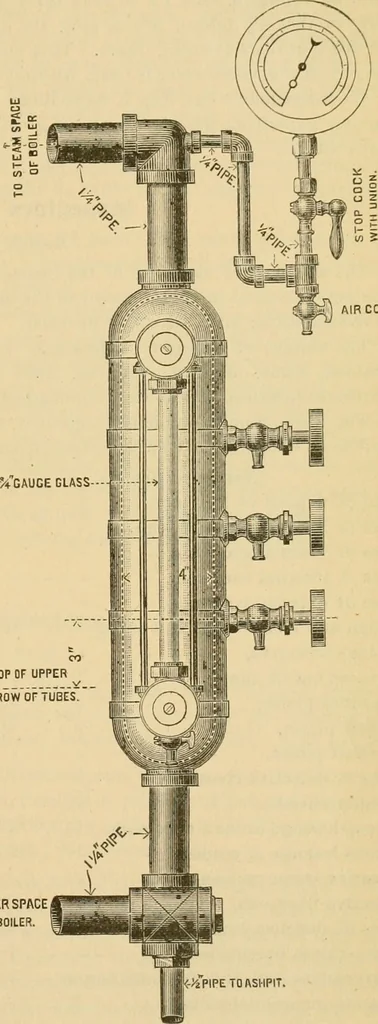

in a boiler isreduced to a minimum. The best way to connect gauge-cocks or glass-gauges is to connecteach one independently of the others,and run the pipe straight throughthe front connection of the boiler.The connecting pipes should be ofample size, and that portion of them be exposed to the heat… … TOP OF UPPERR0W~6rTUBES TD WATER SPACEOF BOILER. K-/i PIPE TO ASHPIT. Fig. 70 THE LOCOMOTIVE. [Mat, Where gauge-cocks and glass are both put on to the same connection, or wherea water-column or combination is used, the connecting pipes should be larger, not lessthan 1| inch pipe should be used, and…
