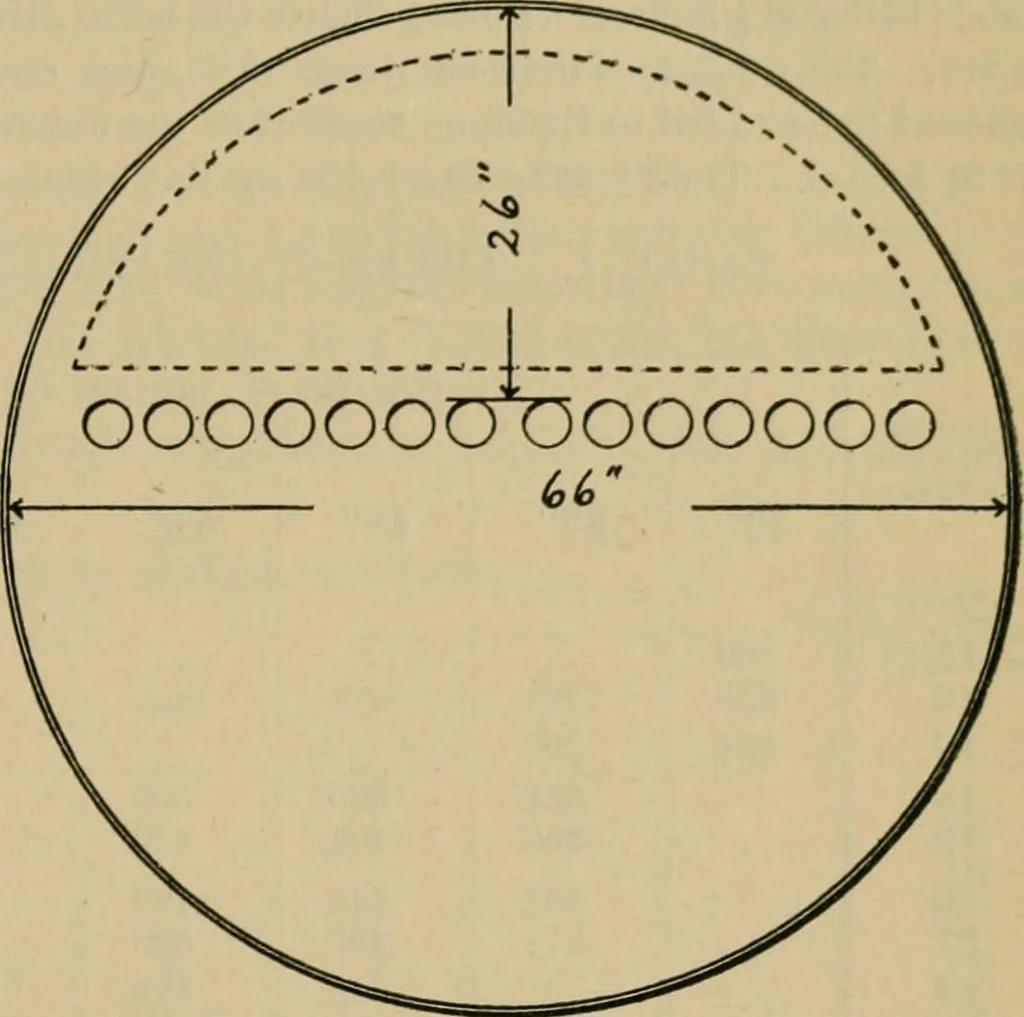

cing consists in a segment of a circle the diameter of which is 60 inches, and theheight of which is 21 inches: 21 inches being the measured height (26 in.) minus the 3inches that lies between the shell and the segment to be braced, and minus the twoinches that lies between this segment and the top… … Fig. 7. — Illustrating the Area to beBraced. 136 THE LOCOMOTIVE, [September, .350, and opposite .350 in the table we find 0.24498. Then 60x60x0.24498=882 squareinches, the area in question. In Table I this calculation has been made for all the sizesof boilers that are ordinarily met with. The area…
