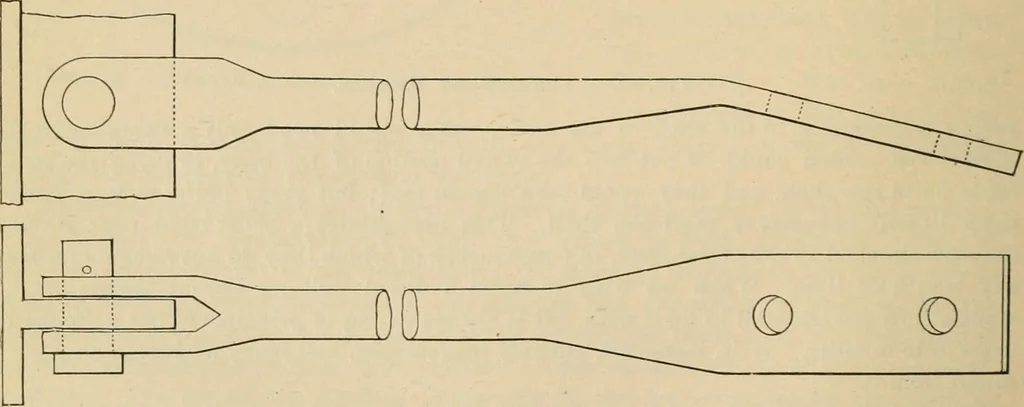

The actual stress on the brace may be found by dividing the total pressure on the areasupported by the brace by the cosine of the angle between the brace and the directionof the stress. Or, to arrive at the result without resorting to calculation, lay out the … EiG. 12. — Braces Used in Connection with the Radial Tee-Irons Shown Above. brace in correct proportions, as shown in Fig. 15. Then, if the pressure on the area tobe braced is represented by the length of the line A B, the length of the brace B C,measured on the same scale, will represent the…
