Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 784

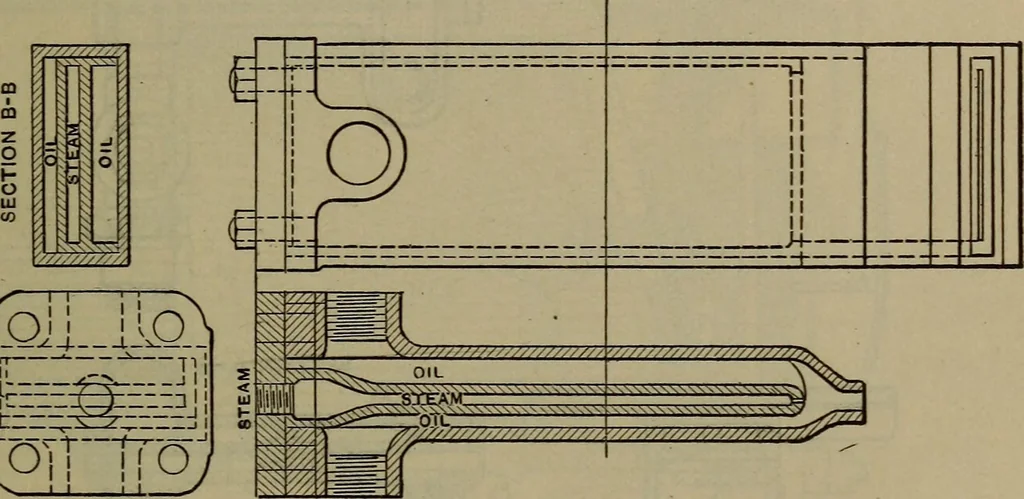

ft o oo PQ s l2.z? BACK ELEVATION FIRING WITH OIL. 769 A. The Sheedy, used on the Southern Pacific; and theHummel, used on the Salt Lake line. Q. Describe the so-called Santa Fe oil burner? A. Referring to Fig. 420: There are two chambers, one forsteam and one for oil, the latter being above and… … fbij__Jio\ hrw^) Fig. 421. Sheedy Oil Burner. left it is spread by the steam into the fire, making a widesheet of flame. The steam and oil supply valves are controlledfrom the cab. This burner is readily attached to the mudring. Q. Describe the Sheedy or Southern Pacific oil burner? A. Referring to…
Locomotives
