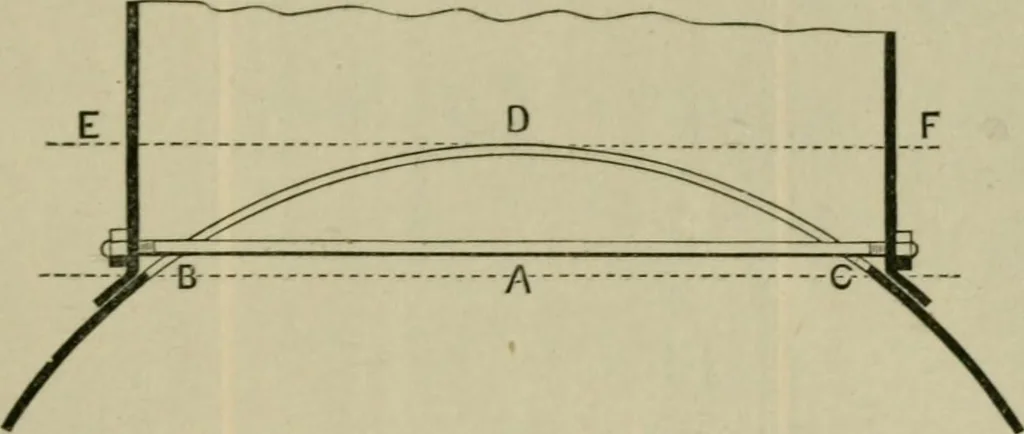

al shell exposed to the same pressure inside and outside — a smallcylinder, let us say, with a hole in one end, and placed in the steam space of a largeboiler. 01)viousIy there would be no strain at all in such a shell; and since in theactual case the part of the shell that lies within the dome of… … Fig. 3. — A Dome Stkexcthexed by Stay-bolts. does not produce any strain at all on this part of it. and the only strain that does comeupon it, therefore, is that which is transmitted to it by the direct pidl of the part of theshell that is outside the dome. There is no doubt that lengthwise of the…
