Hartford Steam Boiler Inspection and Insurance Company · Hartford, Ct. : Hartford Steam Boiler Inspection and Insurance Co · leaf 41

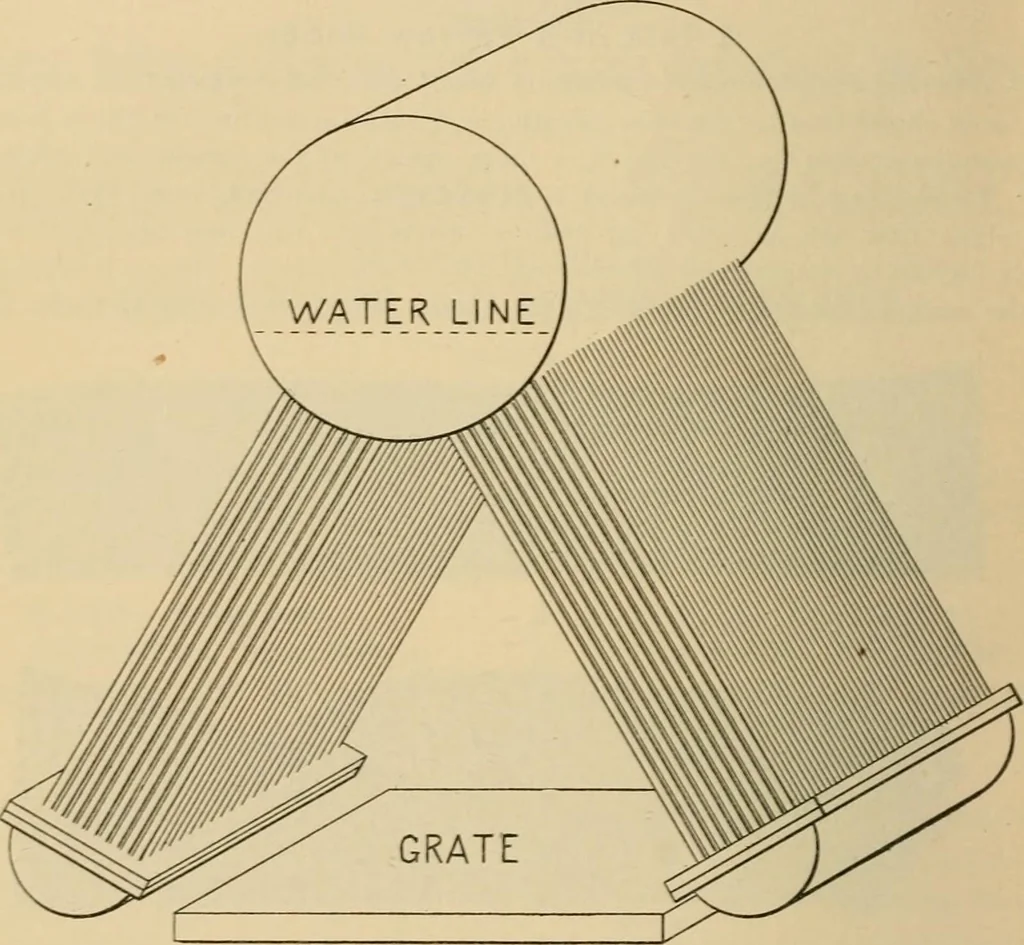

t the cover-plate of each mud-drum or lower water chamber presented the generalappearance shown in Fig. 4. Each bank, as will be seen from Fig. 4, contained 365tubes; and hence iu the entire boiler there were 730 tubes. The vessel is equippedwith four of these boilers, so that the total number of… … Pig. 3.— Diagram of a Yarrow Boiler.Although this may appear to be an excessive number of joints to make tightand keep in proper condition, it is by no means large in comparison with those that arefound in many ether naval vessels that use this type of boiler. In the Eussian torpedo-boat destroyer…
Locomotives · Steam-boiler explosions
