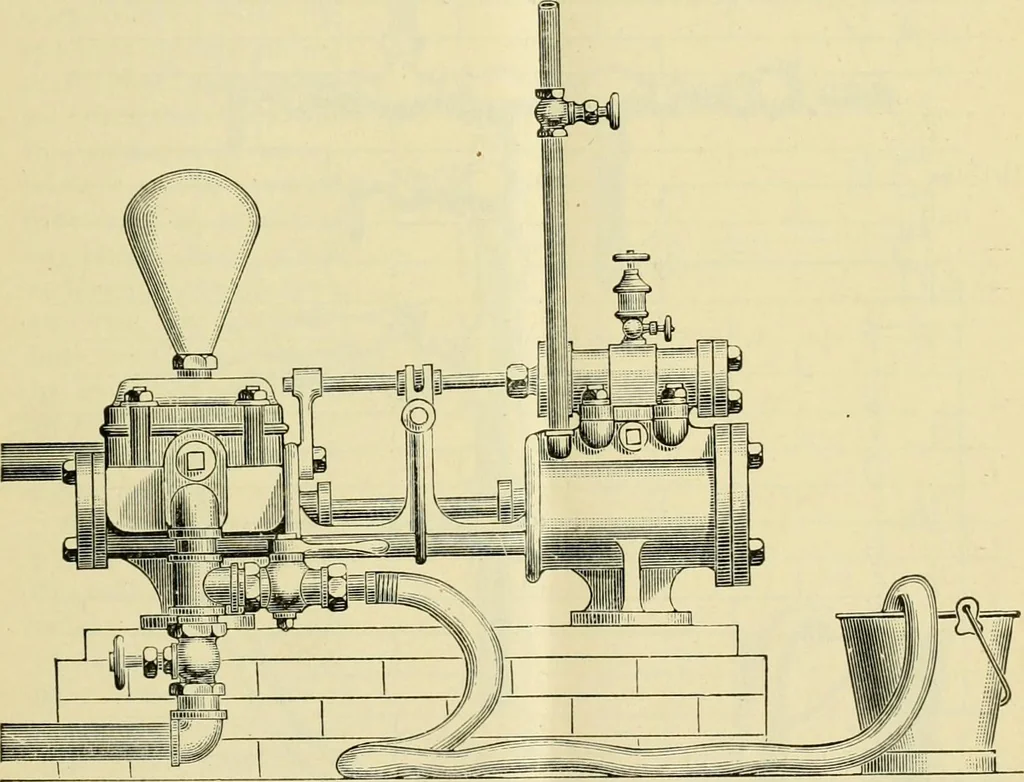

onvenient to make the attachment, owing to the locationof the pump. Fig. 5 shows a modification which is useful under such cir-cumstances. In this arrangement a tee is to be placed in the suction pipe,near its connection with the pump, and two stop valves are to be provided,as shown, one being on… … Fig. 5.—Another Simple Arrangement for Introducing Solvents. in which the apparatus is to be used is evident. Fig. 6 shows a similararrangement, for use in connection with an injector. The methods shown above ordinarily work well in practice, and theyhave the merit of simplicity. We have had…
Locomotives · Steam-boiler explosions
