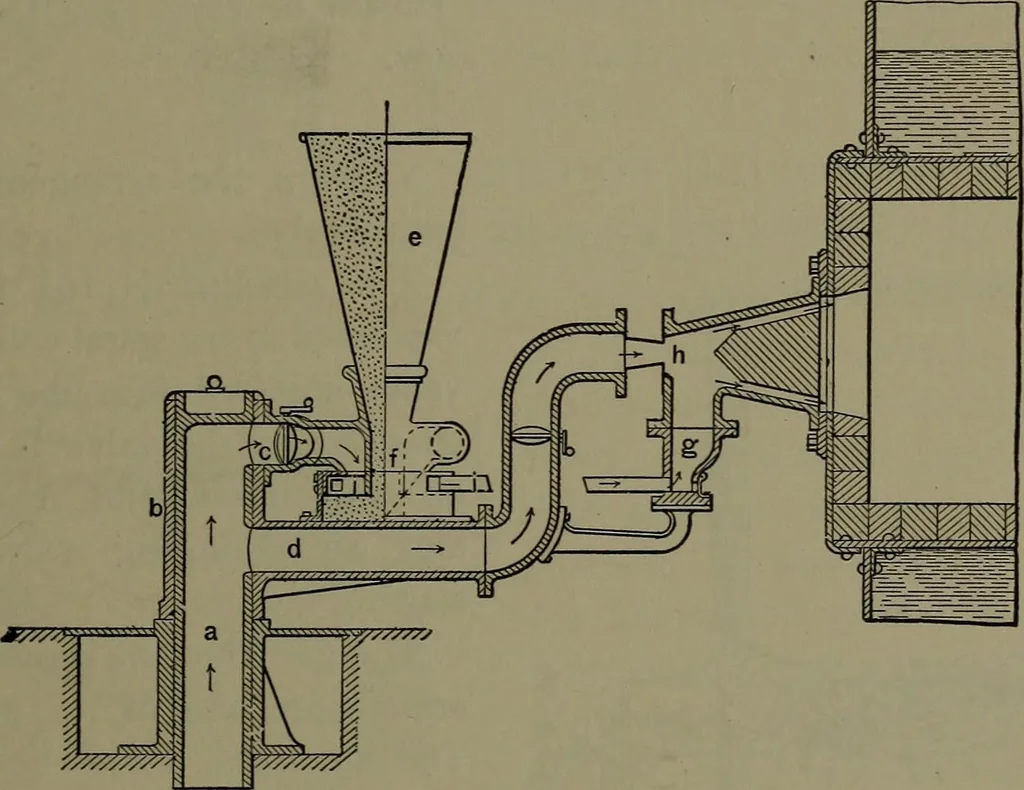

GENERATION OF POWER, STEAM. 6l loi. COAL DUST BURNER. The vertical tube, a, for intro-ducing the air serves as a pivot to the system, which comprises : i, themovable jacket, b, to which are bolted the primary air conduit, c, andthe secondary air conduit, d; 2, the hopper, e, supported by the… … The fixed pipe, a, is provided at the side with two apertures in front ofwhich the two conduits, c and d, coincide when the apparatus is inoperation. At a stoppage, a rotary motion is given the system andthe apertures of the pipe, d, are closed by the sides of the movablejacket. The conduit, c, is…
