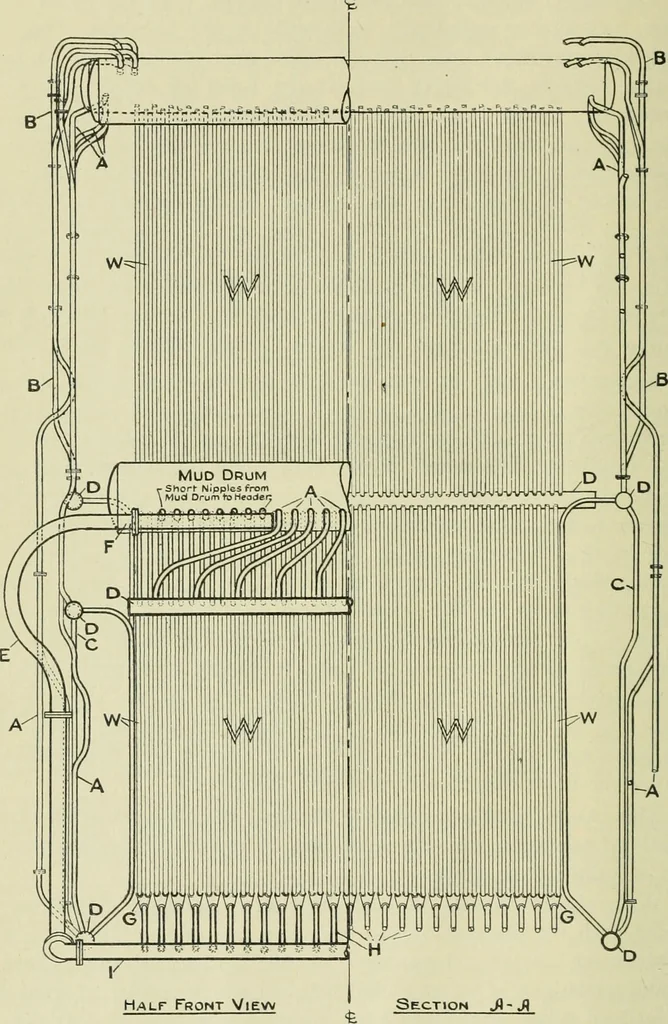

rnace bottom. There areseveral variations of water-cooled bottoms which consist of some formof inclined tubes, sometimes bare, sometimes wholly or partially cov-ered with refractory. The so-called water screen is a series of widelyspaced bare tubes located well above the bottom of the chamber.… … Half Front View Section Ji-Jj Water-cooled Furnace Using Powdered Coal as FuelDrawing shows relation oF Vertical Sent Tube TypeWater Tube Boiler to Water Walls and the Circulat-ing Connections 193° THE LOCOMOTIVE 3 A - Water supply. B Steam outlet. C Water circulator D - Water wall tubeheader E…
