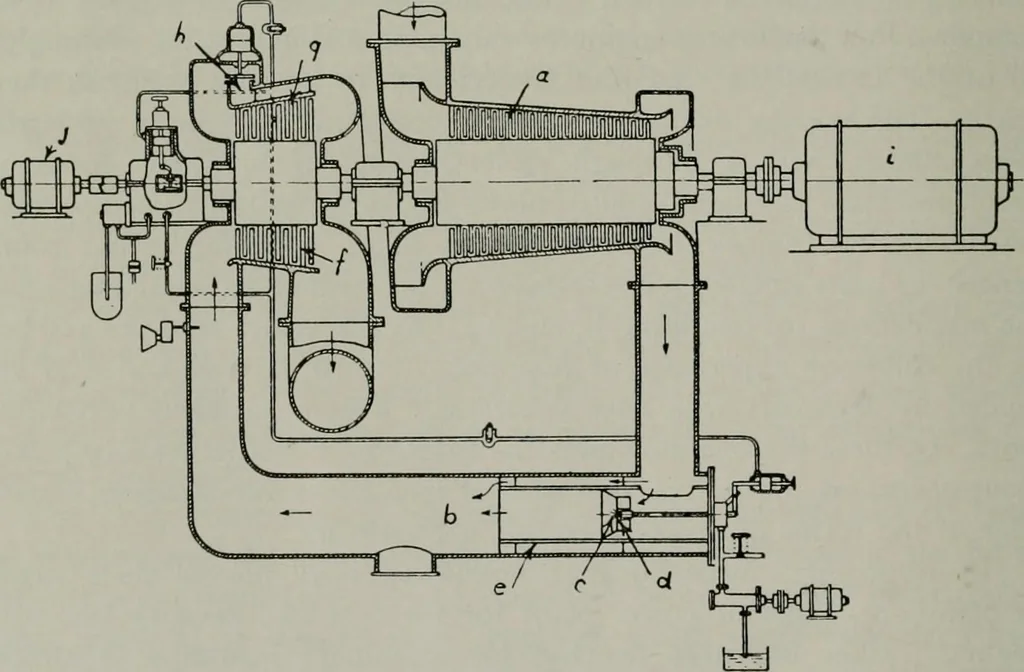

the burner jacket and then mixeswith the gases of combustion to reducethem to the desired temperature, usuallyabout iooo°F. Net output efficiencies offrom 15 to 18 per cent are possible insuch a unit, which, while lower thanfor modern steam and Diesel plants,have offsetting features of low… … Diagmin of tlic simplest form of combustion turbine plant as presentedin Mechanical Engineering by Adolphe Meyer. Parts are: a. axialcompressor; b, combustion chamber; c, ignition point; d, burner;e, burner jacket; f, gas turbine blading; g. reaction type gas turbine;h, bv-pass safety valve; i,…
