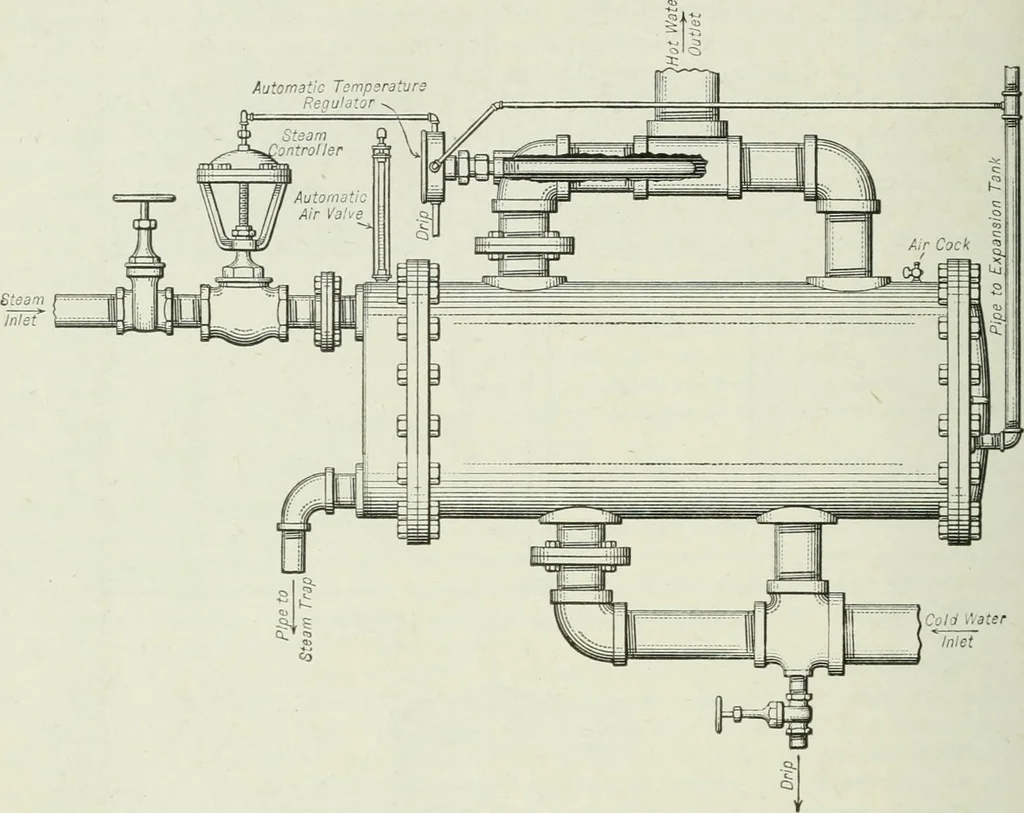

tely 20 per cent ofthe area of the radiation from which condensation is discharged, and is set as an indirect radiatorwith suitable ah supply and discharge ducts. Common proportions are 1 sq. in. of area in coldair duct and ll-i sq. in. of hot-air duct for each sq. ft. of coil surface. The method… … Fig. 4. Hot-W.vter Heater. the meter as shown. Both trap and economy coil must be equipped with automatic airvalves for venting all air pockets. Cast-iron indirect radiator sections are generally used in making up these coils. Eachsection has 10 sq. ft. of heating surface, is 38^ long by 12^ deep,…
