Kirkman, Marshall M. (Marshall Monroe), 1842-1921 · New York and Chicago, The World railway publishing company · leaf 156

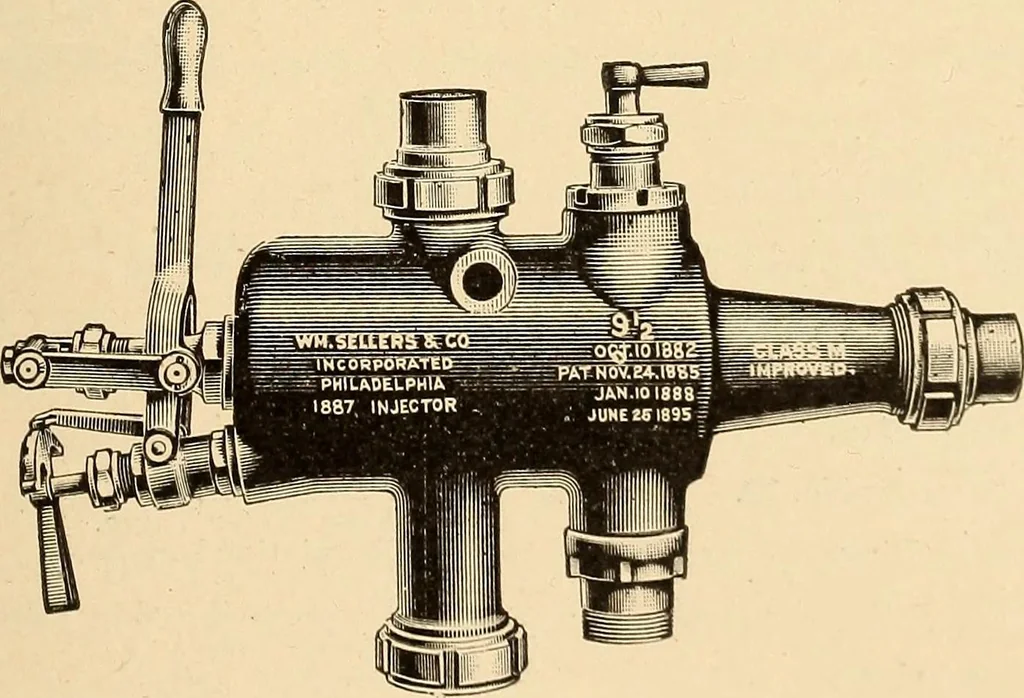

jector in a bath composed of ten parts ofwater to one part muriatic acid. Remove as soon asscale is dissolved. (5) It is essential that the tubes and nozzles bemaintained in good condition, and that the propor-tions be correct, in order to obtain the best resultsfrom an injector. The body of this… … Fig. 3.Sellers Class M Improved Self-Acting Injector. The Sellers improved self acting injector known asClass M is of special form and is interchangeablewith the Monitor, Ohio, and other injectors havingconnections standard therewith. This form is shown by a general view in Fig. 3 andby sectional…
Locomotives
