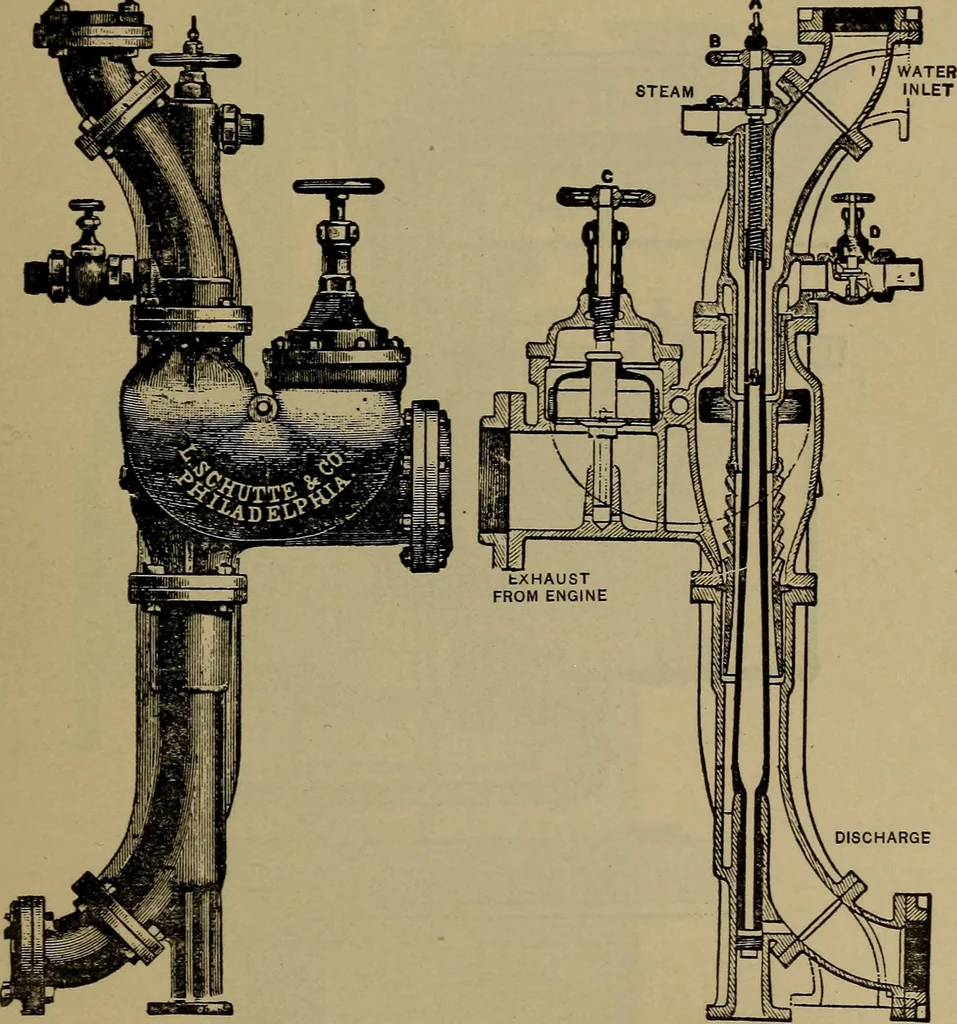

nser to be operated without the 34feet of elevation. The series of gravity siphon and ejectorcondensers are all jet or direct-contact condensers. To start the condenser the starting-jet connected to the CONDENSING AND NON-CONDENSING ENGINES. 3 small inlet marked Steam hi Fig. 82 is opened and the… … Fig. 83. Fig. 82. obliquely downward through the multiple outlets, creatingand maintaining a vacuum behind them. If the condition ofa transverse film of water be considered at the orifice of thedischarge-pipe, it has on its outer face the pressure of theatmosphere transmitted from the surface of…
