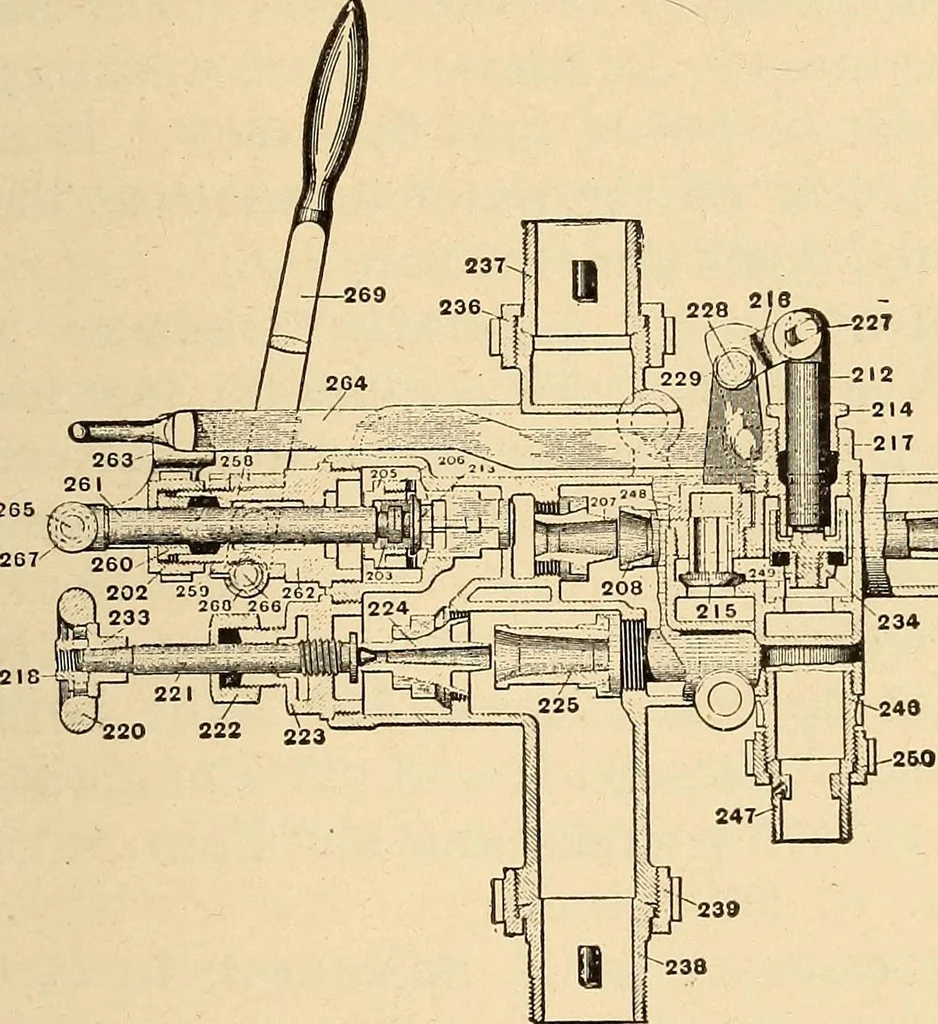

a governor to theforcing tubes, delivering the proper amount of waterrequired for the condensation of the steam, thusenabling the injector to work without any adjustmentunder a great range of steam pressure, handle veryhot water and admit of the capacity being regulatedfor light or heavy service… … a o ^r^^1^ Fig. 7.The Metropolitan 1898 Locomotive Injector. LIST OF PARTS. 202. Packing Nut for 261. 233. 203. Champ Ring. 234. 205. Steam Swivel Ring. 236. 206. Steam Valve. 237. 207. Forcing Steam Jet. 238. 208. Forcing Combining Tube. 239. 209. Check Valve Cap. 240. 210. Check Valve. 241. 211.…
