Kirkman, Marshall M. (Marshall Monroe), 1842-1921 · New York and Chicago, The World railway publishing company · leaf 176

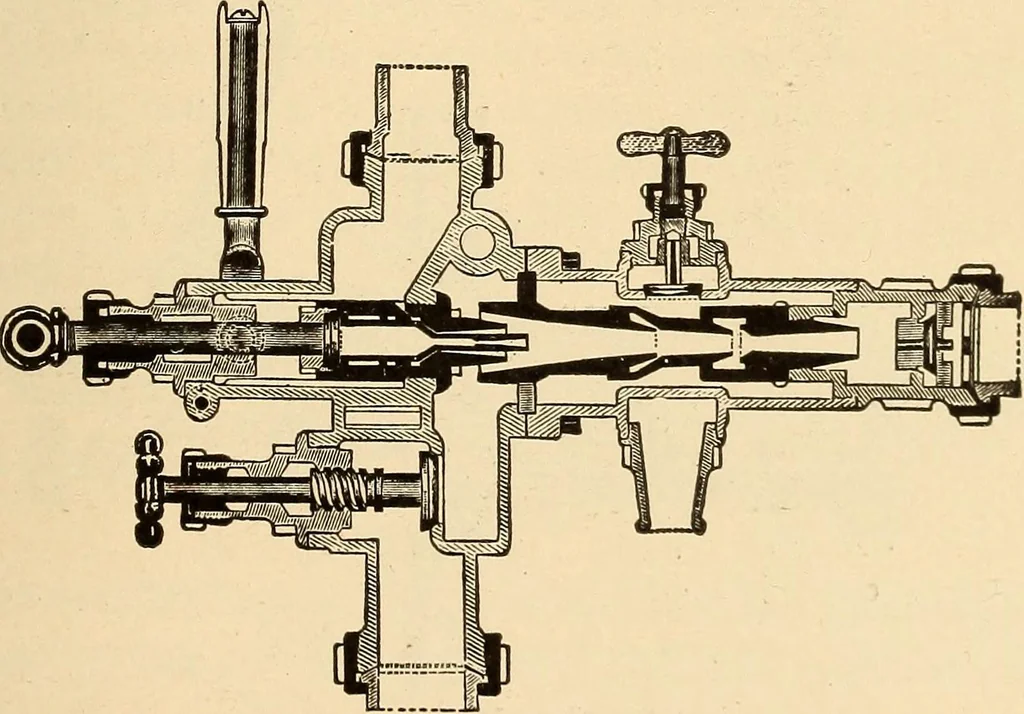

es the vacuum formed in the chamber causes thevalve (12) to open and admit the additional amount ofwater required. This machine is claimed to be very economical and LOCOMOTIVE APPLIANCES. 167 efficient, and will work at all pressures from seventy totwo hundred and fifty pounds without any… … Fig. 12. The Ohio Locomotive Injector. (Sectional View). that the combining tube and the delivery tube arescrewed directly to the delivery end connection on theright in the cut, and can be taken out with an ordi-nary wrench without disturbing the other tubes; thelifting tube, instead of being…
Locomotives
