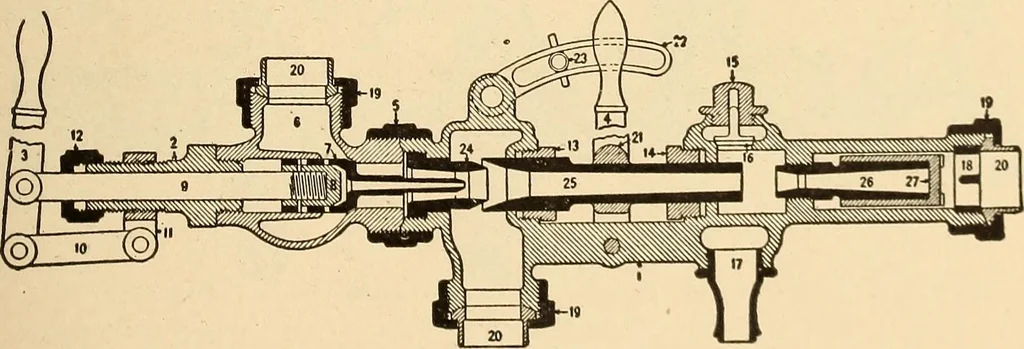

Monitor pipe connectionsare obtained. Operation.—To start, pull the handle slightly untilwater appears at overflow (C), then draw handlecompletely back. To stop, push handle forward through its fullstroke. To regulate its capacity, turn wheel (S). To Use as a Heater.—Pull handle back with a… … Fm. 14. Little Giant Loc emotive Injector. (Sec tional View.) LIST OF PARTS. 1. Body. 15. Overflow Cap. 2. Stuffing Box. 16. Overflow Valve. 3. Starting Lever. 17. Overflow Nozzle. 4. Injector Lever. 18. Check Valve Stop. 5. Right and Lefl Nut. 19. Coupling Nut. 6. Starting Valve Body. 20. Swivel.…
