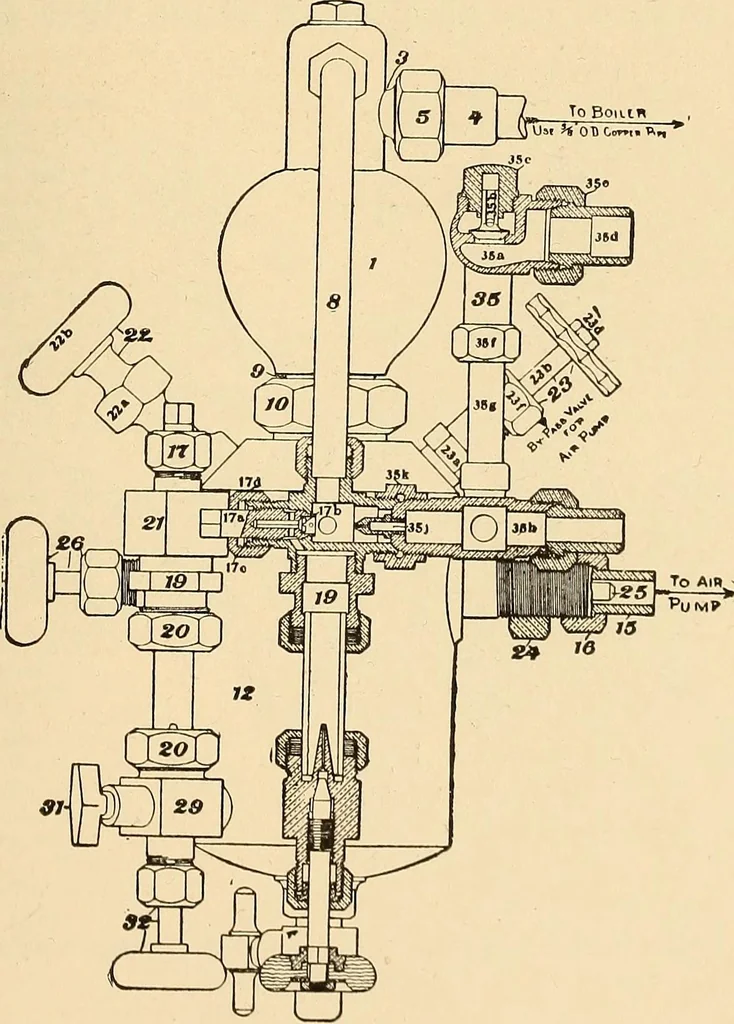

Fig. 1. Detroit Triple Feed Locomotive Lubricator with Tippett Attachment.(Front Elevation.) diameter should be used, as shown in cut, and it isrecommended that this pipe be brazed to the swivelN instead of being screwed into same. The pipe usedfor connecting the condenser to the boiler should… … Fig. 2. Detroit Triple Feed Locomotive Lubricator with Tippett Attachment (Side Elevation.) 2nd. Conned Lubricator at coupling C to boilerspace, using copper pipe of £ outside diameter or itsequivalent, and a \ inch valve at boiler. 3rd. Connect coupling £> with Dry Pipe as shown 262 LOCOMOTIVE…
