Kirkman, Marshall M. (Marshall Monroe), 1842-1921 · New York and Chicago, The World railway publishing company · leaf 271

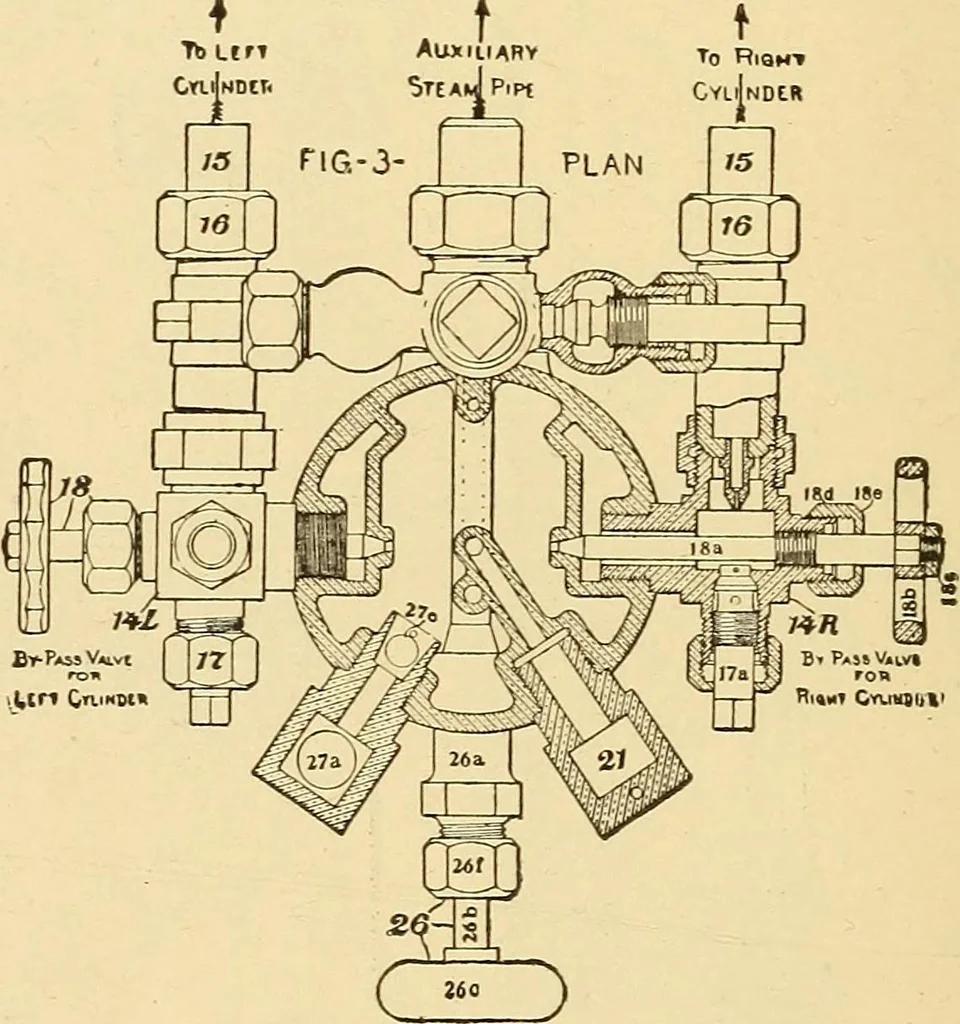

Triple Feed Locomotive Lubricator with Tippett Attachment (Side Elevation.) 2nd. Conned Lubricator at coupling C to boilerspace, using copper pipe of £ outside diameter or itsequivalent, and a \ inch valve at boiler. 3rd. Connect coupling £> with Dry Pipe as shown 262 LOCOMOTIVE APPLIANCES. in… … Fig. 3. Detroit Triple Feed Locomotive Lubricator with Tippett Attachment.(Plan View.) The above cut shows cross section view as if Lubricator were cut openhorizontally on the level of the upper sight feed arms. The steam chest oil pipe plug should be of thepattern shown in Fig. 5, having a hole…
Locomotives
