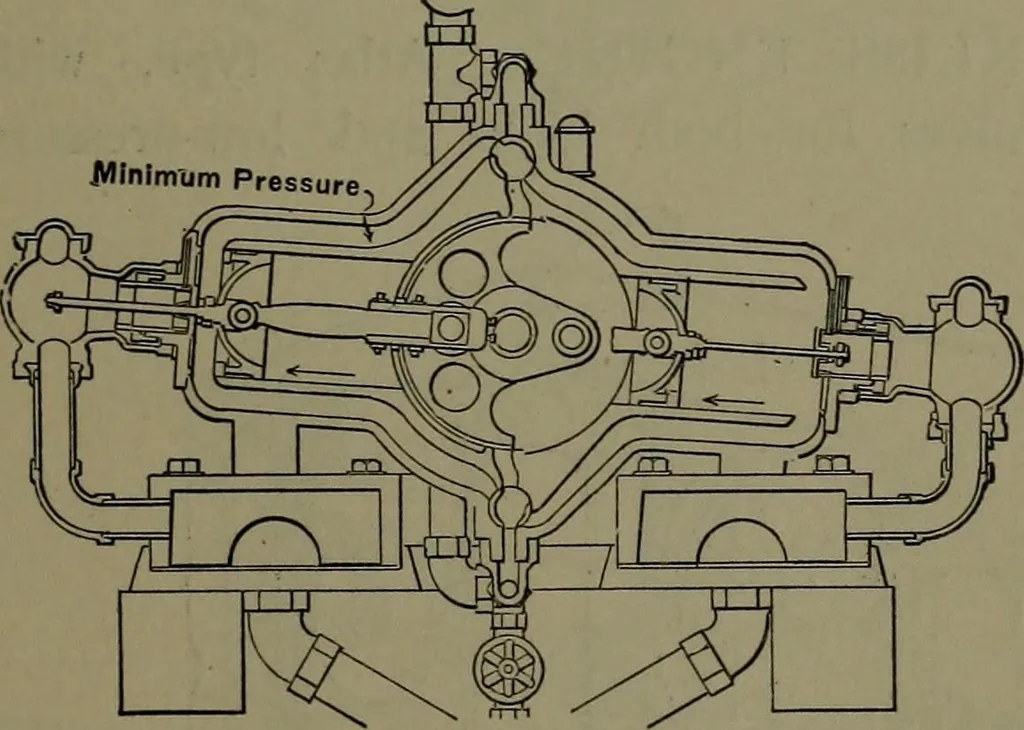

An illustration from Mechanical appliances, mechanical movements and novelties of construction; a complete work and a continuation, as a second volume, of the author's book entitled "Mechanical movements, powers and devices" ... including an explanatory chapter on the leading conceptions of perpetual motion existing during the past three centuries, 1914, leaf 78
between pistons andpass to the opposite side ofthe same, driving them in-ward to the position asshown in the right end of cut. As soon as the inward stroke is com-pleted, the extension stem on pistons opens the end or exhaust valves,which remain open until the pistons complete their outward stroke… … 76 STEAM POWER APPLIANCES. 149. TRIPLE EXPANSION MARINE ENGINE. Type ofsteamer Minnesota. Proportion of cylinders, i, 5, 15 in area; stroke.
