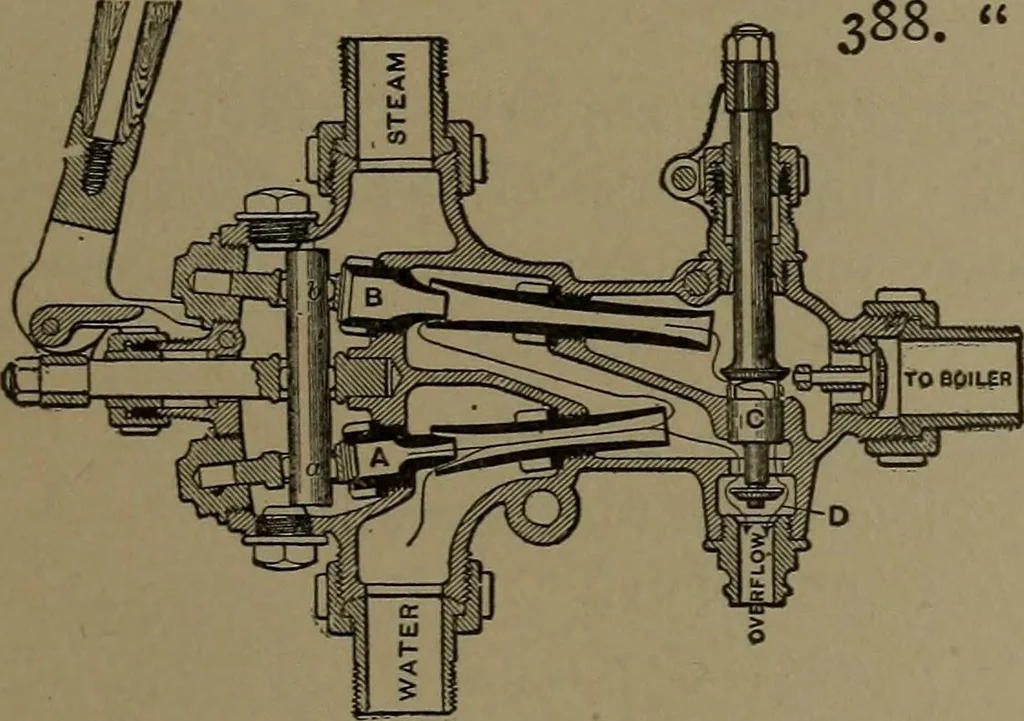

TO BOILER 387. EXCELSIOR INJECTOR.—A separate valve gives steamto the lifting nozzle A, theoverflow cock D C beingopen. The first movementof the handle opens the coni-cal valve b ; 2. further move-ment closes the overflow cockD C to both the lifting andforce overflow S. … ms!^^^^
