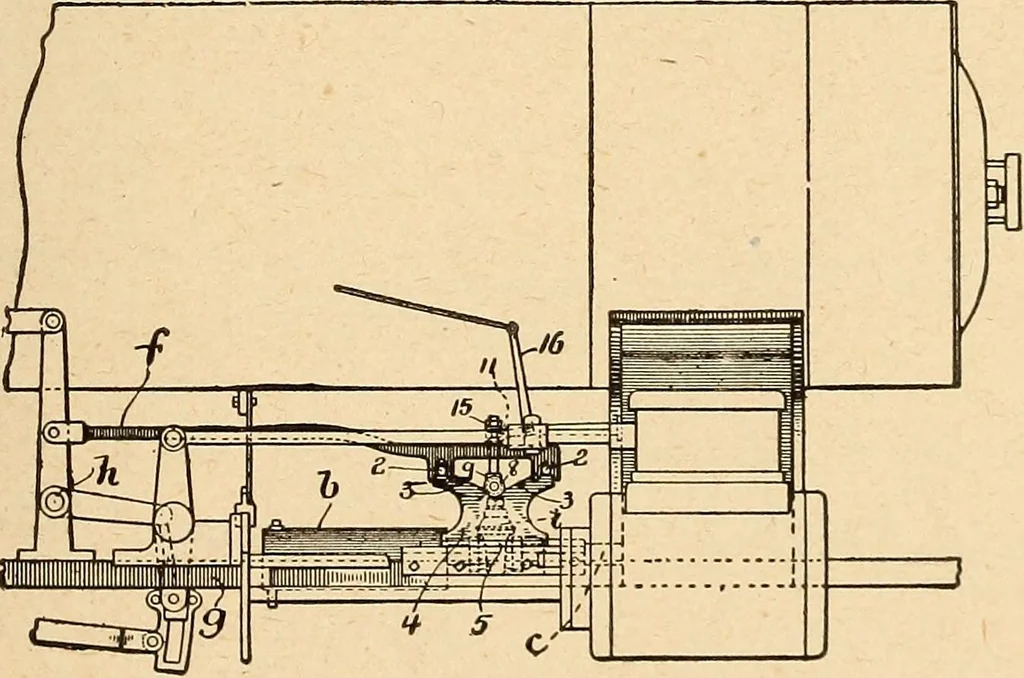

n the LOCOMOTIVE APPLIANCES. 323 cylinders and the smoke-box and pipes led backthrough the saddle; these pipes (which should be atleast two inches in diameter and larger, if possible)are connected with a reservoir or drum located imme-diately back of the saddle, as shown in Fig. 4; thisdrum is… … Fig 1. Huff Automatic Variable Exhaust. (Side View.) less when the reverse lever is in mid-gear. Theescaping steam from the vent may be piped to anyconvenient discharge point, as, for instance, up theback of the stack.* The application of the apparatus to a locomotive,and the relative arrangement…
