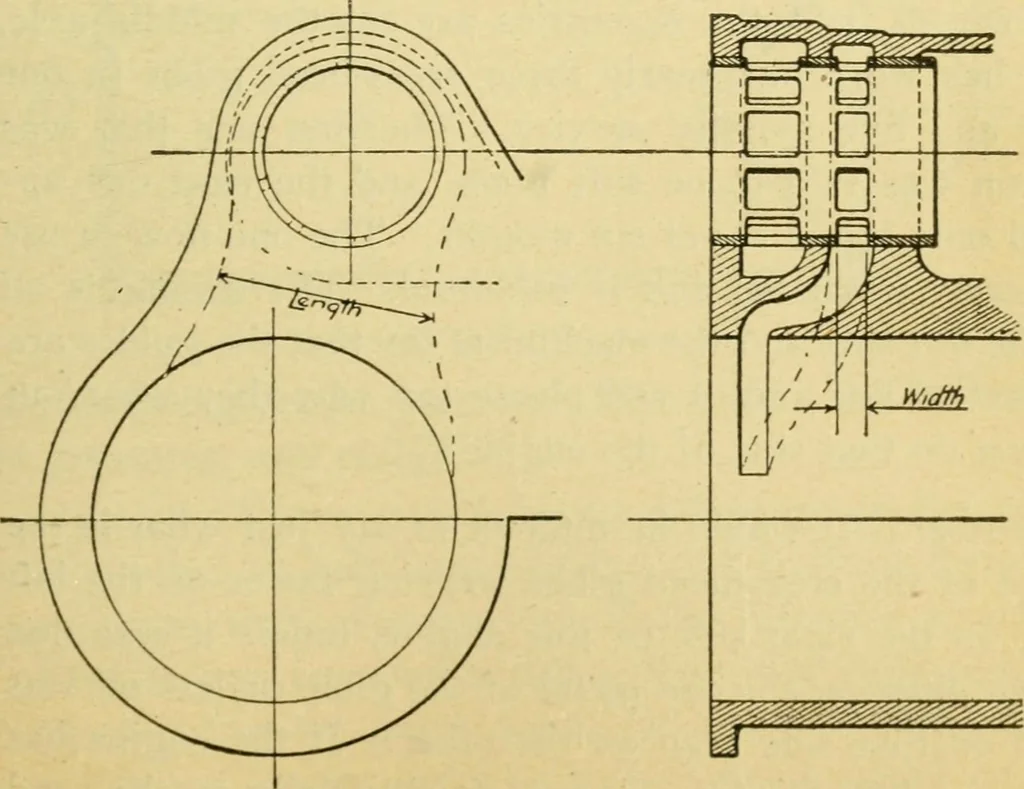

t could be applied. With apiston-valve engine, and the valve-chamber broken, itwould have to be patched or a new casting made, whichusually consists of a cylinder and valve chamber withports for the admission and exhaust of steam. Thevalve chamber is bored out large enough to insert a bush-ing,… … End and partial side view of Piston-Valve Chamber, Bushing and Cylindo 140 LOCOMOTIVE BREAKDOWN QUESTIONS and part of a side view of a piston-valve chamber, bush-ing and cylinder. In speaking of the width of the portsthey are measured for width the same as in the slide-valve engine. Taking the…
