Mechanical drawing; a treatise on the drawing of mechanical and machine details (1920)
Jones, Franklin Day, 1879-1967 · New York, The Industrial press; [etc., etc.] · leaf 130

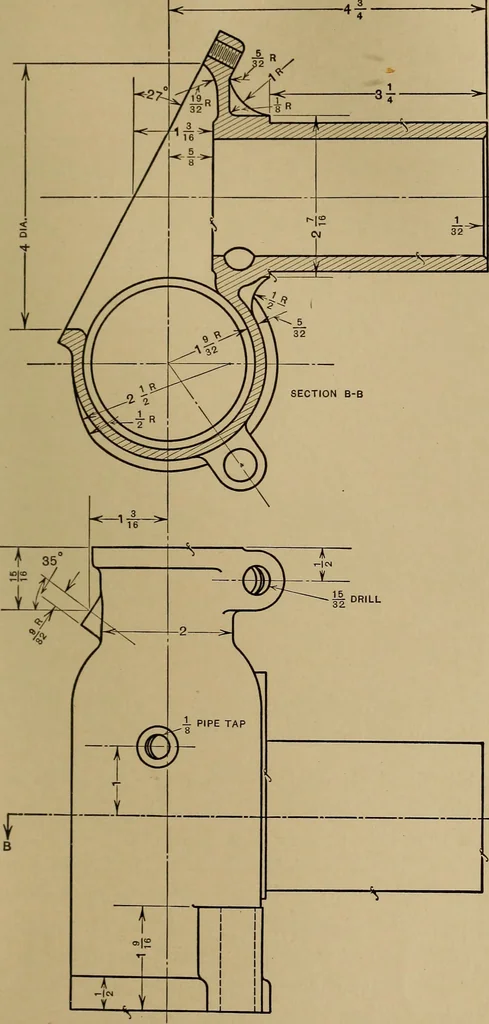

SECTION A-A Machinery Fig. 23. Automobile Steering Gear Case — Note how Relation of Sectional Viewto Plan View is indicated SECTIONAL VIEWS 117 r^^f^^ … FT 3-? Machinery Fig. 24. Additional Views of Automobile Steering Gear Case illustrating howPosition of Sectional View is indicated n8 MECHANICAL DRAWING coincide with the center line; but sometimes the cutting planeis assumed to pass through the part to a certain point andthen change its…
Mechanical drawing
