Locomotive breakdown questions answered and illustrated (1907)
Wallace, W. G · Chicago, F. J. Drake & Co. · leaf 157

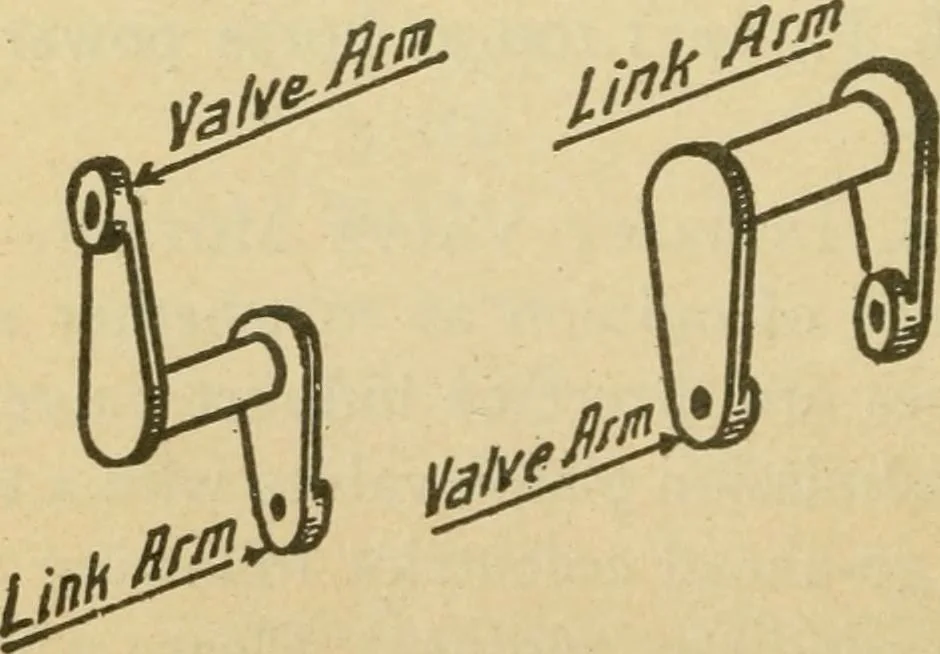

Fifir.2 … Fig. 3 mission valves make this change of position af the ec-centrics necessary with an indirect rocker. This illustra-tion is a view of an indirect motion or rocker, because LOCOMOTIVE BREAKDOWN QUESTIONS 149 the valve is traveling in one direction and the eccentricis traveling in the opposite…
Locomotives
