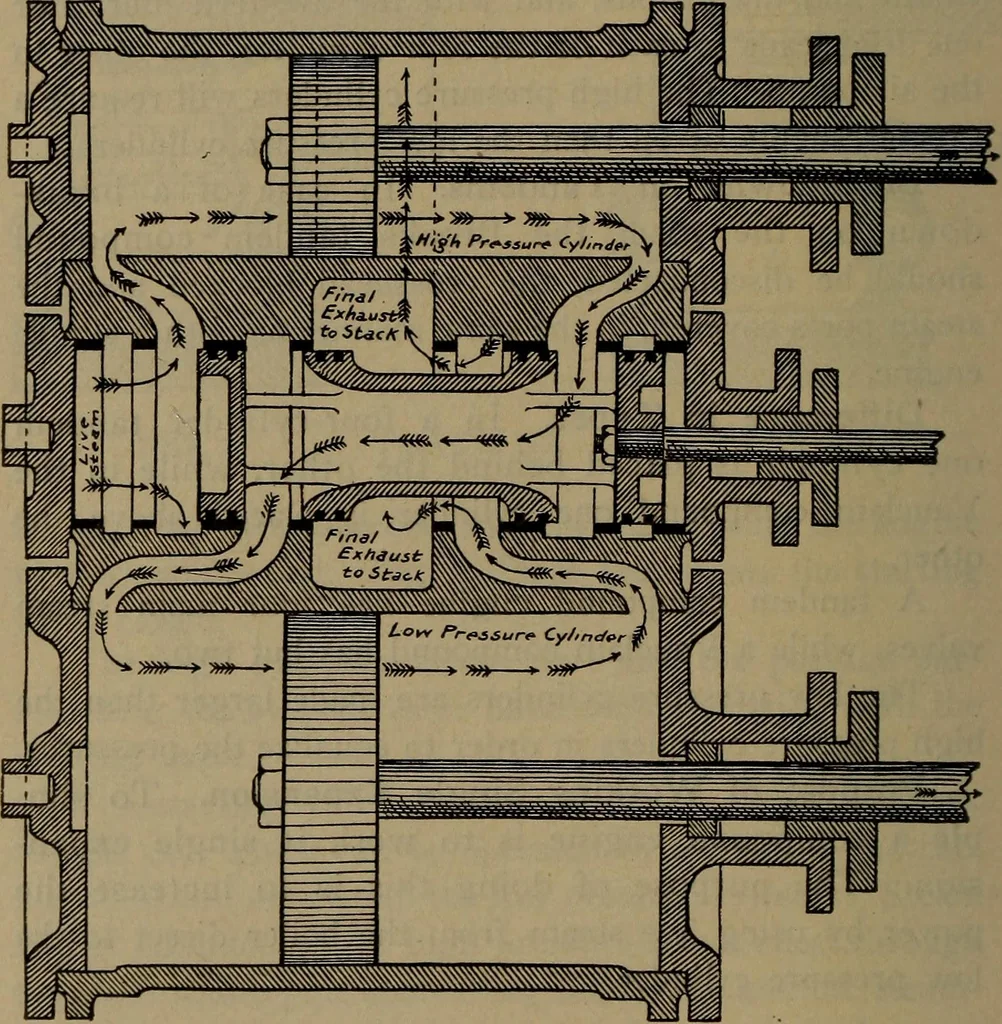

ylinders and is exhausted throughthe hollow of the valve to the low pressure cylinder andthence to the exhaust past the end of the valve (Plate 2^2 COMPOUND LOCOMOTIVES. 123). When working as a simple engine, steam is admit-ted directly from the steam-chest to the starting valve, andpasses through… … PLATE 123.direct from the high pressure steam-chest, prevent thehigh pressure cylinder from exhausting into the low pres-sure, and have no effect on the working of the engine. Engine Drifting. When drifting down grade thereverse lever should be in full gear and the startingvalve open as when…
