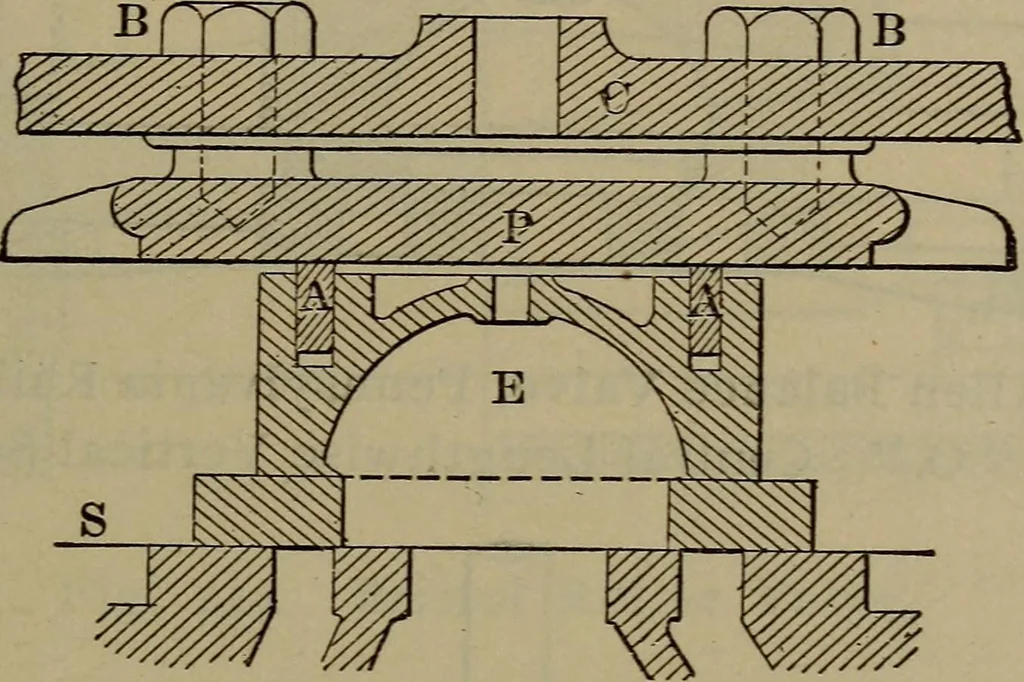

a flat plate held out from the chest cover, parallelwith the valve, the top of which latter is faced off plane; andpacking strips are held against the plate by springs. There is BALANCED VALVES. 241 a hole from the exhaust arch of the valve to the spaceincluded between the valve back and the… … Fig. 140. Richardson Balanced Valve. A. It is simply an ordinary D slide haying in the top orback packing strip A bearing against a plate P that lies paral-lel with the valve seat S, and is fastened to the chest coverC by screwrs B. The central part of the valve back is recessedand is in…
