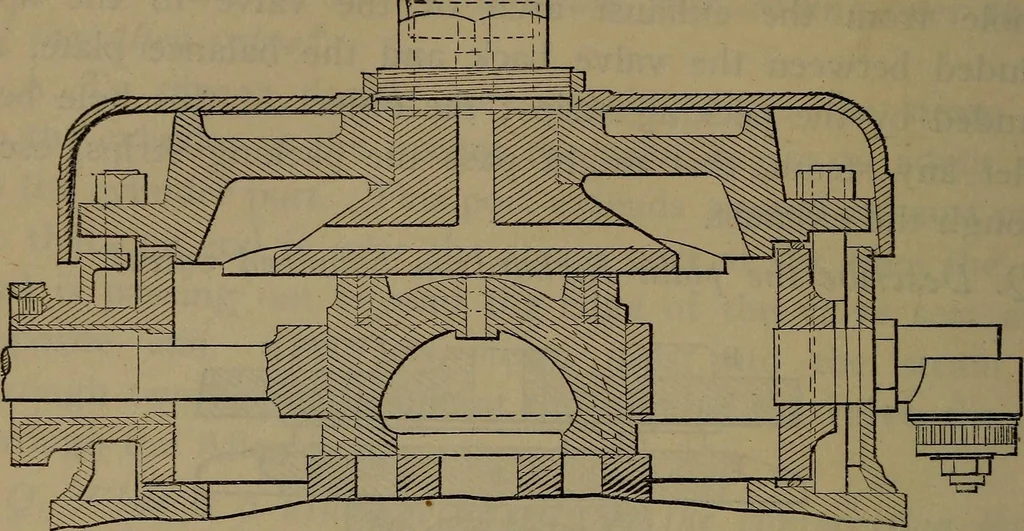

valve back is recessedand is in communication with the exhaust arch £ by a centralhole. (Fig. 140.) Q. Can the Allen valve be balanced? A. Yes; in Figs. 141 and 142 such a valve is shown. Q. What is the rule for area of a single balance for plain Dvalves? A. 13/12 of the combined areas of one steam… … Fig. 141. Allen Balance Valve, Pennsylvania Railroad Engine,Class O. Central Lengthwise Vertical Section.
