Mechanical equipment of buildings; a reference book for engineers and architects (1916)
Harding, Louis Allen, Willard, Arthur C. (Arthur Cutts), 1878-1960 · New York Wiley · leaf 443

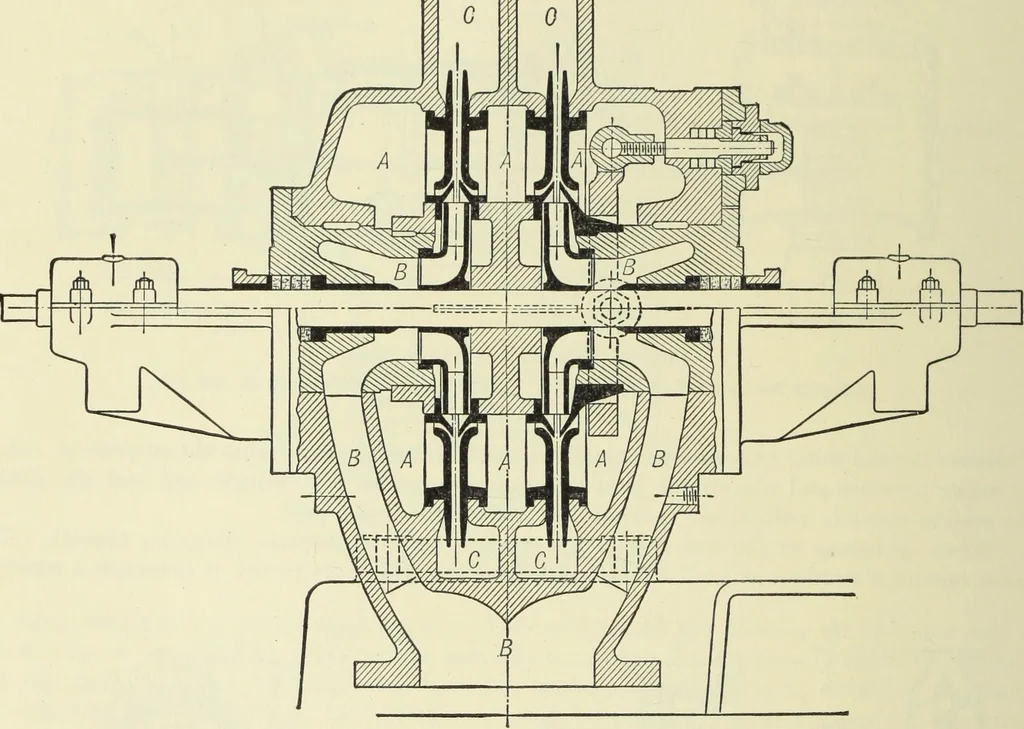

, owing to the 422 TOWER PLANTS AND REFRIGERATION absence of valves, may be driven at high speed, and is supplanting the reciprocating type to aconsiderable extent for high-vacuum work in connection with all forms of condensers. The Leblanc Air Pump. By referring to Fig. 36, which shows an air and… … Fig. 37. Thyssen Entrainment Vacuum Pump.AA, Air Suction Chambers; BB, Water Suction Passages; CC, Water and Air DischargelPassages. forms the annular nozzle of a steam ejector, so that on opening the valve in the steam line avacuum is created in the body of the air pump. The chamber E being piped…
Building · Heating · Ventilation
Internet Archive · University of Toronto, Robarts Library · Public Domain Mark 1.0. Free to use for anything.
