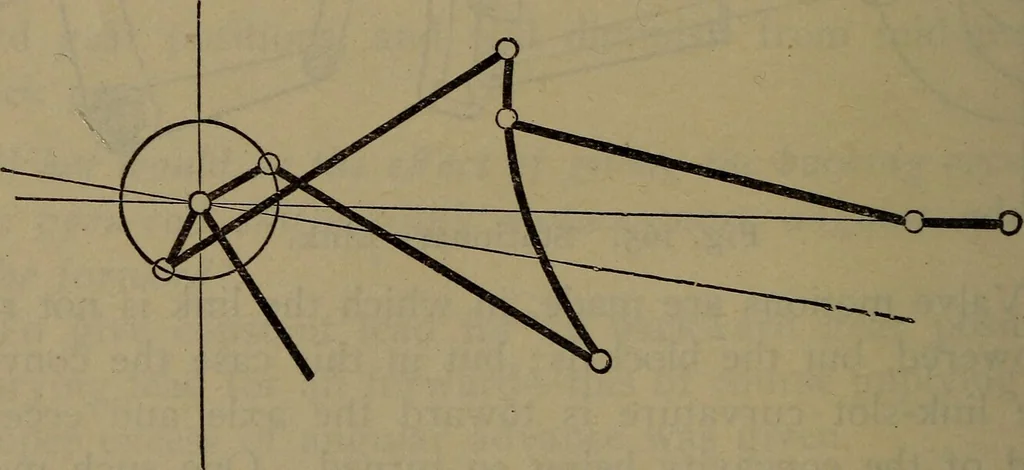

f the backing eccentric;F that of the forward eccentric; ^ being the saddle and thepoint of suspension of the link; P the block attached to theradius-rod PV, that is raised and lowered by the hanger RT,which is carried by a bell-crank lever moved by a hand leverin the same way as with the… … Fig. 167. Gooch Valve Gear, Crossed Rods. Q. How about the lead in this stationary-link motion? A. It is constant for all gears; although the lead angleincreases just as much as with the shifting link. Q. How about the lead with this motion, if the rods arecrossed? A. It has constant lead both with…
