Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 322

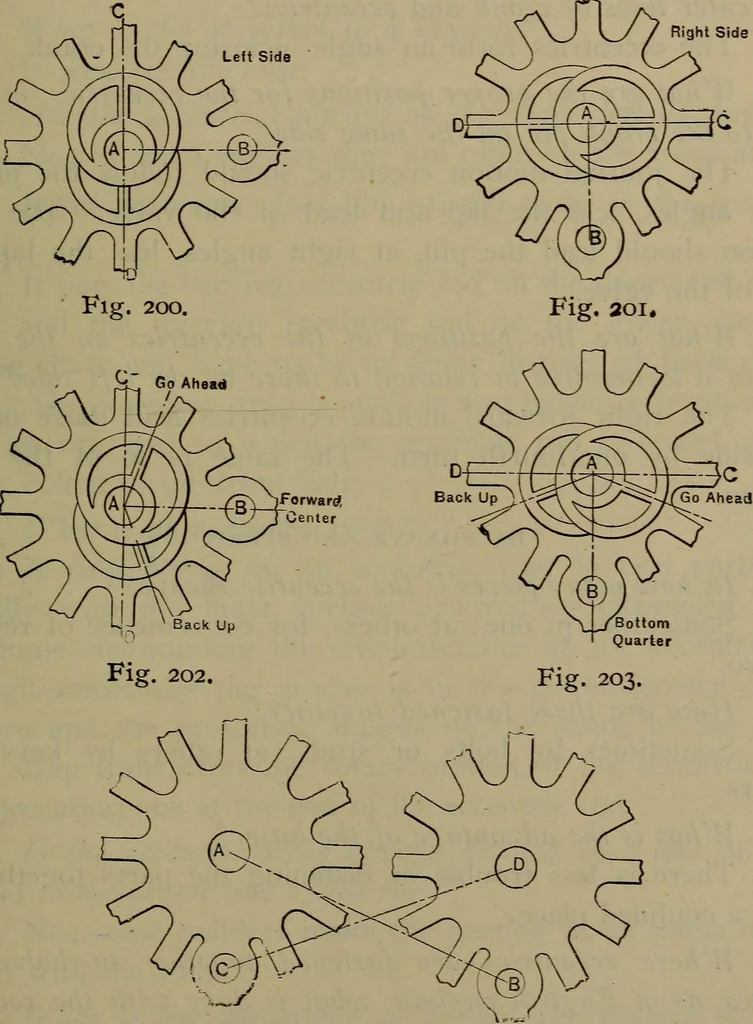

the distribu-tion be? A. Admission and cut-off will occur at the same point of thestroke, but there will be less width of port opening with the-small throw, ECCENTRIC MOTIONS. 315 O. What would be the positions of the two eccentrics on theleft-hand side if there •were neither lap nor lead? A. As… … Fig. 204. Location of Eccentrics, 316 LOCOMOTIVE CATECHISM. Q. If there zvere lead or lap, or both, on the left side, withthe crank on the forward quarter? A. As in Fig. 202, the amount of angle depending on theamounts of lap and lead. Q. On the left side, with the crank on the bottom quarter? A.…
