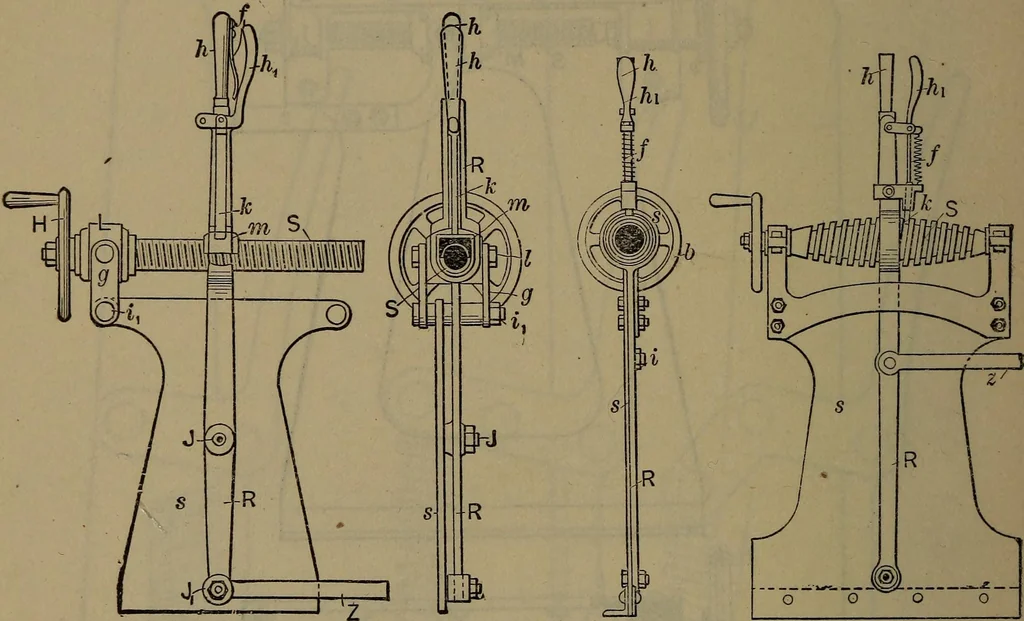

Figs. 216 and 217.Reverse Lever Gear. Figs. 218 and 219.Reverse Lever Gear. 328 LOCOMOTIVE CATECHISM. Q. Is this better than giving the screw more pitch? A. Yes; that would give more friction. Q. Describe the German reversing gear A. The bearing L has fore-and-aft motion (with regard tothe stand s)… … Figs. 220 and 221.Reverie Lever Gear. Figs. 222 and 223.Reverse Lever Gear. gives fore-and-aft motion to the half-nut m, and with this tothe lever R, about the pin /, and to reach the rod Z. The half-nut m may be raised out of gear by the latch hi attached to thelever handle h. , This rig permits…
