Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 376

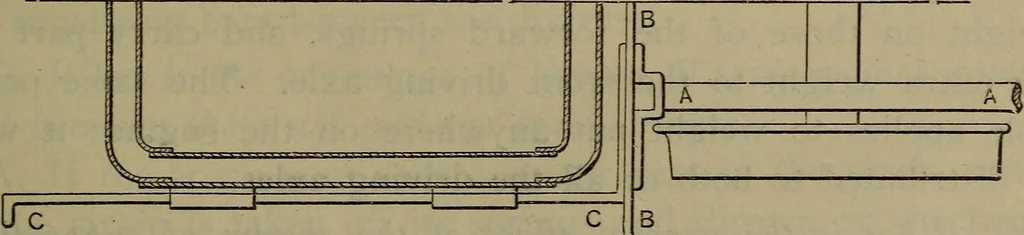

Fig 244. Frame for Narrow-gage Engines. A. That there is not enough room for the fire-box betweenthe frames; and it must be made very narrow, unless theframes are made with an off-set or cross plate projecting out- … Fig. 245. Frame for Narrow-gage Engines. side of the wheels, as shown in Figs. 244 and 245, in whichB B is the cross plate, bolted to the back ends of the arms.Two flat bars C C are bolted thereto and put far enough apart 370 LOCOMOTIVE CATECHISM. to give between them sufficient room for a fire-box…
