Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 553

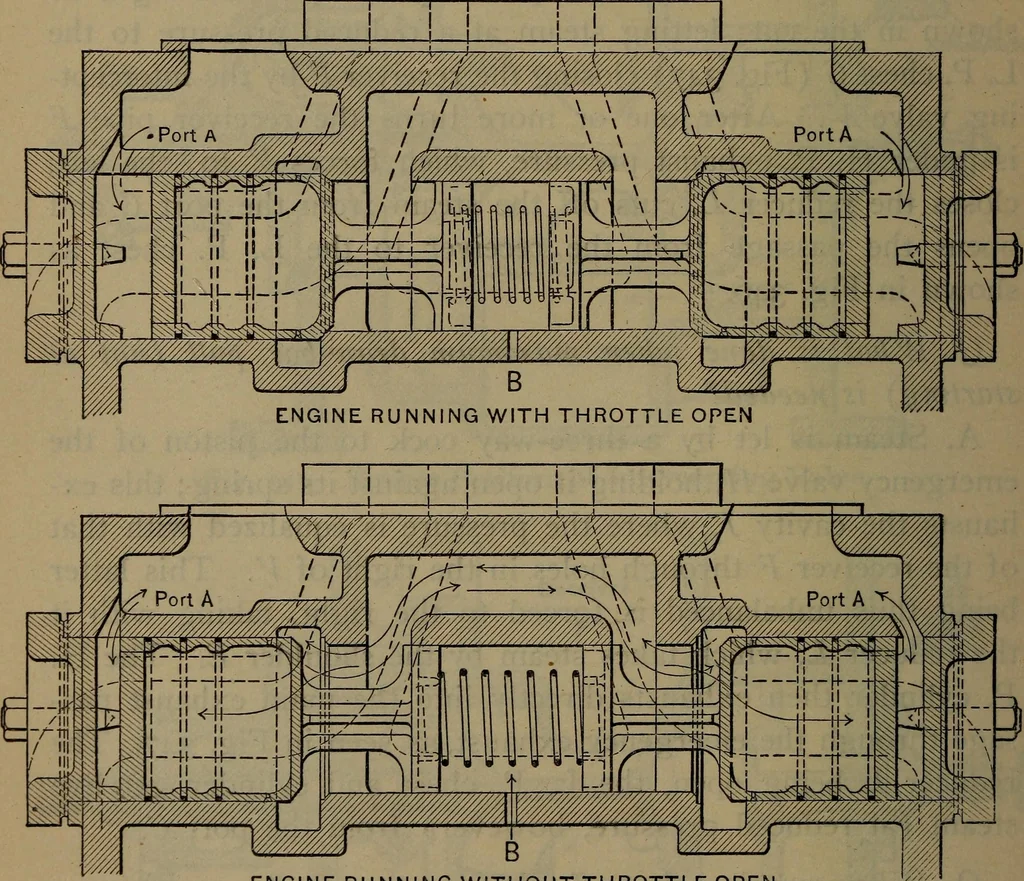

s with conicalseats, the two end ports communicating with the steam chest. 538 LOCOMOTIVE CATECHISM. Q. Describe the operation of these valves, in running (i)with throttle open (2) with it shut? A. As seen in Fig. 347, the chest pressure through ports A Acloses the passage, with the valves, against… … ENGINE RUNNING WITHOUT THROTTLE OPEN Figs. 347 and 348. Q. Describe the intercepting arrangements of the RichmondLocomotive and Machine Works (Mellin) two-cylinder com-pound engine? A. As shown in Figs. 349 to 352 inclusive, there is an in- RICHMOND COMPOUND. 539 tercepting valve, / V, a…
Locomotives
