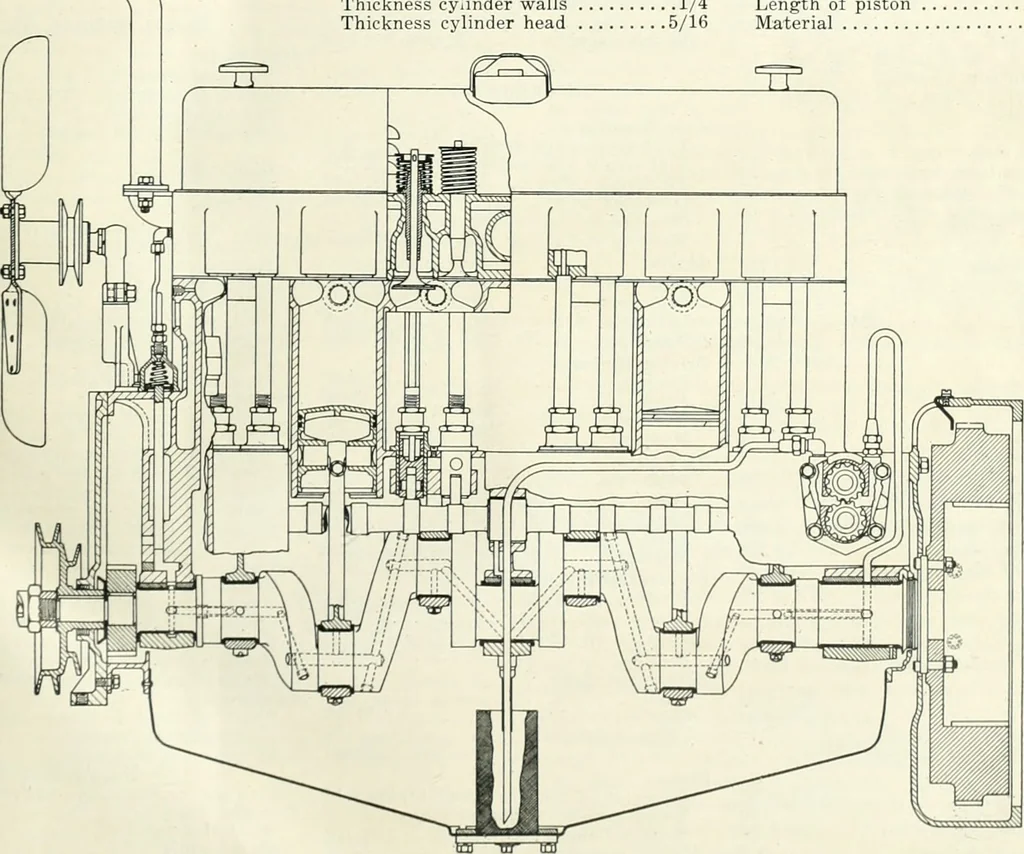

cu. in. Piston swept vol 37.3 cu. in. Total piston displacement. .224 cu. in.Horsepower by S. A. E. formula. .25.39Horsepower developed.65 at 3000 r.p.m.Cylinders Center spacing 6-1/4 and 4 Thickness cylinder walls 1/4 Thickness cylinder head 5/16 Thickness water jacket-walls... .3/16 Mean water… … Longitudinal section of Ansted engine, showing arrangement of oil pump, and flywheel with in-ternal teeth to mesh with teeth on driven clutch plates Piston Pins Outside diameter 873 Inside diameter 9/16 to 11/16 Material. .No. 1020 S. A. E. steel,annealed and case hardened Connecting Rod Length…
