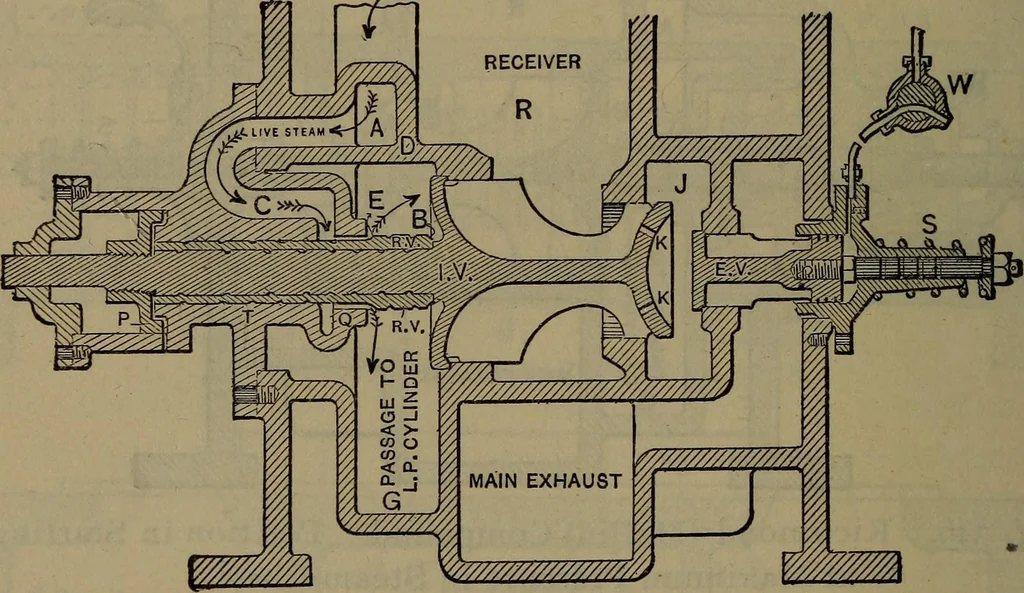

TIVE CATECHISM. main exhaust by a spring, aided by the receiver pressure in /.It may be opened by the engineman by admitting steam atfull boiler pressure through the three-way cock W, in the cab. Q, Where is the receiver? A. In the smoke-box. Q. What is the action in starting automatically? A.… … Fig. 35°- Richmond (Mellin) Compound. Position inStarting Automatically. there is no pressure in the receiver R, and the pressure on theshoulder E of the reducing valve R V moves the reducingvalve, and with it the intercepting valve, to the right (asshown in Fig. 352), closing the receiver R, and…
