Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 595

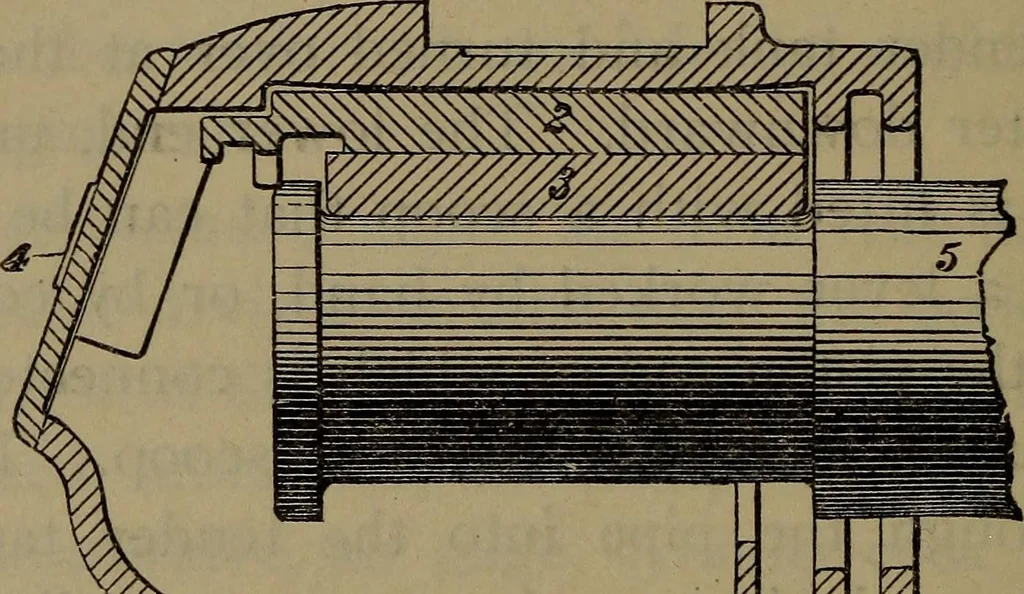

trucks, except that the journalbearings and frames are outside the wheels instead of inside,to give greater facilities for oiling, or for renewal of thebearings. r>8f> LOCOMOTIVE CATECHISM. 0. How arc the tender-axle boxes made? A. About like car-axle boxes, the journal being- in a cast-iron… … Fig. 383. Tender Journal-box. 1. Box, 2. Wedge. 3. Brass. 4. T^id. 5. Axle. Q. Hozv is the tender usually borne by its trucks? A. On two points at the back axle, and on a center pin atthe front axle, thus giving a three-point bearing. Q. What keeps the tender trucks from getting crosszvise ofthe…
