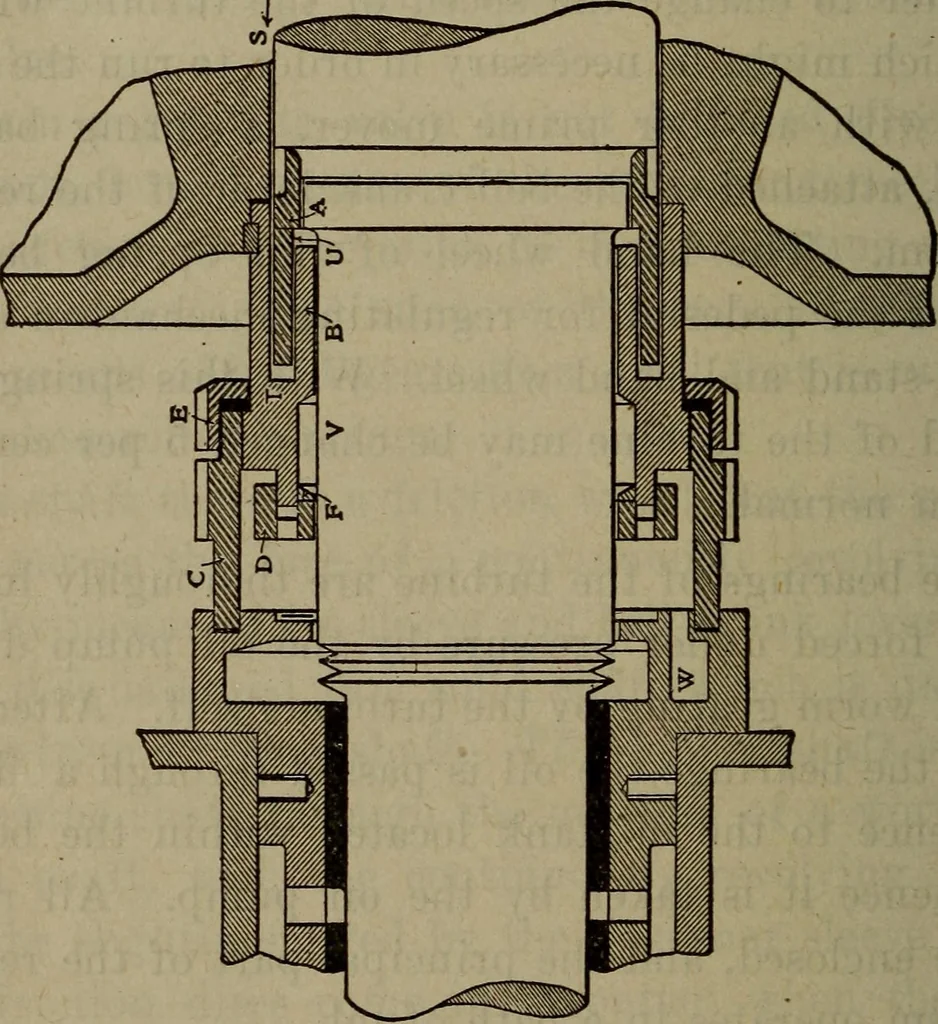

steam frompassing axially through the small clearance between theshaft and the sleeve. The reader will readily understandthat it would not be practical to use such a long sleeve in 678 Steam Engineering the construction of a steam turbine, as this arrangementwould considerably increase the length… … Fig. 290 In the Hamilton-Holzwarth turbine^ use is made of thetelescopic idea; that is the entire length of the sleeve issplit into several parts^ and these single parts are shiftedtogether. In Fig. 290 the ring A screwed upon the shaftprojects axially into a groove of the ring B, and…
