Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 63

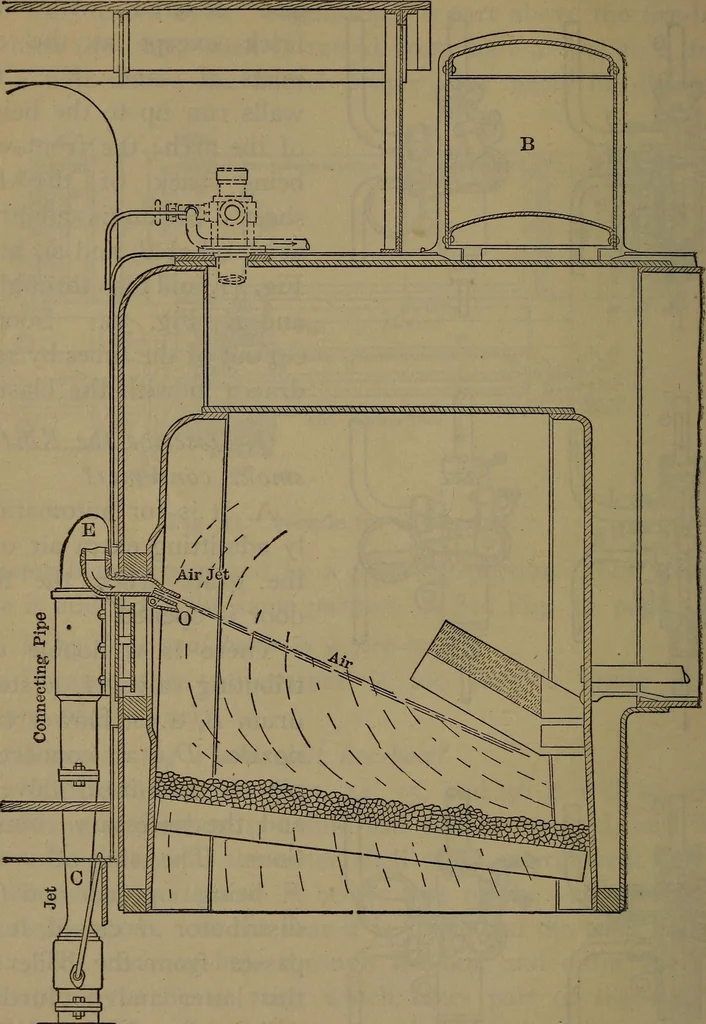

a steamdrum B, a jet blower C, anozzle D, a connectingpipe E, a shut-off valve F,and the necessary connec-tions. The shut-off valveF being opened and thedistributor A closed, steampasses from the boiler tothis latter and no further.(Figs. 48 and 49.) Whenthe door is opened, A auto-matically admits… … Fig. 48. Korting Smoke Consumer. THE FIRE-BOX. 61
