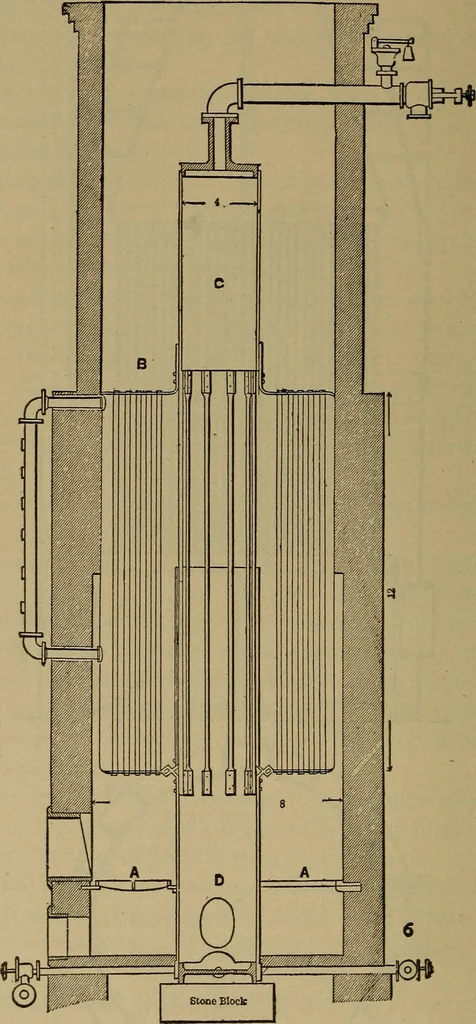

Fig. 420, 494 MECHANICAL ENGINEERING OF POWER PLANTS. … Fig. 421. TYPES OF BOILERS. 495 drum C arranged as a superheating surface, a mud-drum D tocatch sediment, and an annular grate A, supplying the hotgases to the vertical tubes. The Reynolds boiler groups thetubes in such fashion that through a manhole full access is givenbetween the rows to every…
