Locomotive dictionary. definitions and illustrations of American locomotives, their parts and equipment, together with typical illustrations of machine tools and devices used in their maintenance and repair (1916)
American Railway Master Mechanics' Association, Wright, Roydon Vincent, 1876-1948, Mitchell, George · New York, Chicago : Simmons-Boardman Pub. Co.; [etc., etc.] · leaf 518

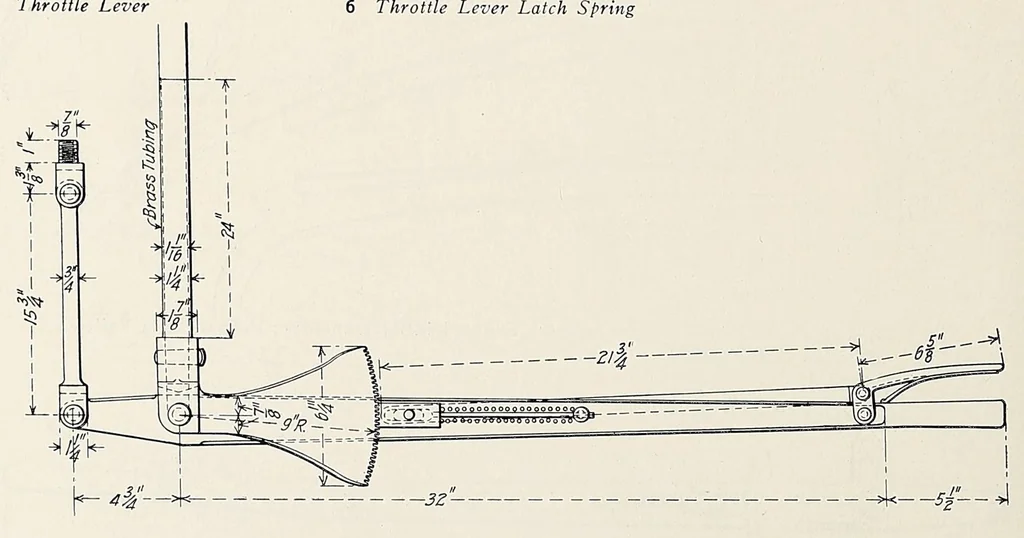

HROTTLE LEVERS. Figs. 1157-1160 Fig. 1157 — -Throttle Lever Fulcrum. Fig. 1158 — -Throttle Lever Latch. Fig. 1159 — Throttle Lever Quadrant. Figs. 1157-1159 are Details of Throttle Lever for Atlantic Type (4-4-2) Locomotive; Pennsylvania Railroad. Names of Parts of Throttle Levers, Figs. 1156-1161.… … Fig. 1160 — Throttle Lever and Quadrant for Mikado (2-8-2) Locomotive. Built for the Illinois Central by the Baldwin Locomotive Works.
