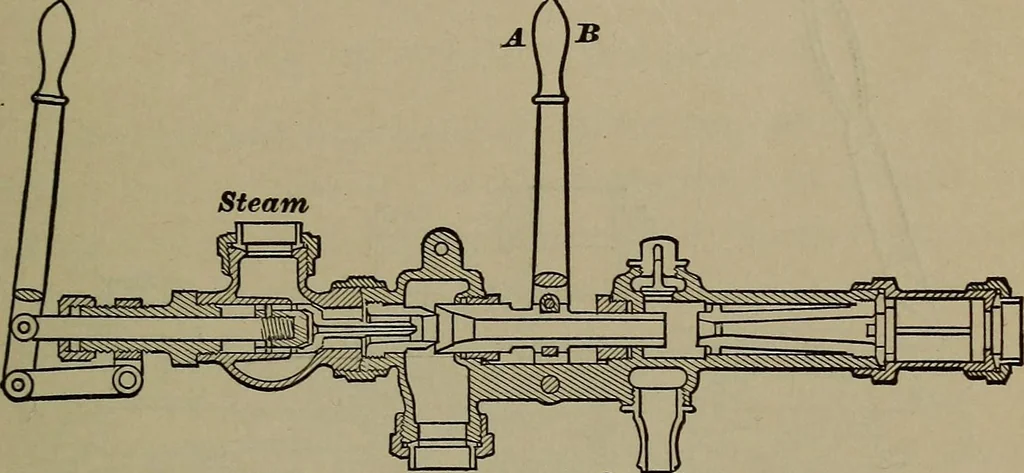

and a very simpleapparatus. The construction is clearly seen in theengraving. A unique feature about this injector is SHORTNESS OF WATER. 3 the movable combining tube adjusted by a lever,causing the feed to be exactly suited to the service.Moving the lever towards A tends to cut off the feed,and… … Water Overflow Fig. 4. Little Giant. slightly till the water begins to escape from the over-flow, when it is opened full. The feed is then regu-lated by the combining tube lever. To use thisinjector as a heater, the overflow is closed by thecombining tube being moved up against the discharge,and…
